Description
NEST Vacuum Filtration Systems With ISO9001&13485 certified, NEST Vacuum Filtration Systems are manufactured in 100,000 grade cleaning room with USP 6 grade raw materials. Nest delivers the one stop solution for its products including tooling making, injection, processing, sterilization, all under one roof.
Nest is committed to be your best choice for laboratory and medical consumables.In addition to this product, NEST has launched over 200 plastic consumable products for cell culture, Molecular Biology, Microbiology, liquid handling and storage, Lab Instruments and Medical Instruments.
Product Features:
2. Precise graduation on the bottle wall
3. Various specifications：Membrane materials include: PES, PVDF、CA、MCE ; Volume: 250ml、500ml and 1000ml
4. Low protein binding
5. Gamma-ray sterilization
6. Filter diameter: 250ml volume for the 50mm membrane diameter 500ml volume for the 90mm membrane diameter.
7. The design of hose connector is adaptable to various hose diameters.
8. Light weight and firm outer wall structure, easy to grasp
Product description:

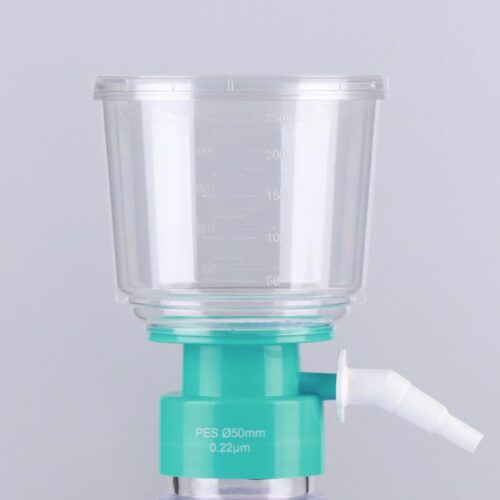

It is mainly used in tissue culture media and biological fluids for separation and purification of large volume samples. The whole set includes membrane diaphragm, a graduated, transparent polystyrene funnel connected to a receiving bottle by a connector. The disposable vacuum filter utilizes a vacuum pump to provide pressure differentials for processing large volumes of tissue culture fluids and other laboratory fluid solutions and the volume of processed samples could be up to several liters. The filtered samples can be stored directly in sterile collection bottles.
Attention：
1. γ sterilization
2. No endotoxin, no pyrogen
3. For laboratory use only
4. If the package is damaged, please do not use
Warning:
1．Do not use plastic bottles, glass bottles, flasks or containers that are not designed for filtration and cannot withstand negative pressure to connect to the upper cup
2．Not suitable for culture flasks larger than 2L
3．Working temperature: 4-37°C
4．Working pressure: 0.03-0.06Mpa, if there is foam, please reduce pressure appropriately.
Vacuum Filtration, PVDF Memberane
| Cat.No. | Volume (mL) | Pore Density (μm) | /Pack | /Case |
| 342102 | 250 | 0.10 | 1 | 12 |
| 342101 | 250 | 0.22 | 1 | 12 |
| 342103 | 250 | 0.45 | 1 | 12 |
| 343102 | 500 | 0.10 | 1 | 12 |
| 343101 | 500 | 0.22 | 1 | 12 |
| 343103 | 500 | 0.45 | 1 | 12 |
| 344102 | 1000 | 0.10 | 1 | 12 |
| 344101 | 1000 | 0.22 | 1 | 12 |
| 344103 | 1000 | 0.45 | 1 | 12 |
Vacuum Filtration, MCE Memberane
| Cat.No. | Volume (mL) |
Pore Density (μm) |
/Pack | /Case |
| 342202 | 250 | 0.10 | 1 | 12 |
| 342201 | 250 | 0.22 | 1 | 12 |
| 342203 | 250 | 0.45 | 1 | 12 |
| 343202 | 500 | 0.10 | 1 | 12 |
| 343201 | 500 | 0.22 | 1 | 12 |
| 343203 | 500 | 0.45 | 1 | 12 |
| 344202 | 1000 | 0.10 | 1 | 12 |
| 344201 | 1000 | 0.22 | 1 | 12 |
| 344203 | 1000 | 0.45 | 1 | 12 |
Vacuum Filtration, PES Memberane
| Cat.No. | Volume (mL) |
Pore Density (μm) |
/Pack | /Case |
| 342002 | 250 | 0.10 | 1 | 12 |
| 342001 | 250 | 0.22 | 1 | 12 |
| 342003 | 250 | 0.45 | 1 | 12 |
| 343002 | 500 | 0.10 | 1 | 12 |
| 343001 | 500 | 0.22 | 1 | 12 |
| 343003 | 500 | 0.45 | 1 | 12 |
| 344002 | 1000 | 0.10 | 1 | 12 |
| 344001 | 1000 | 0.22 | 1 | 12 |
| 344003 | <span style=”line-height:19.6px;font-family:Arial;f |
