Description
Product Details
Key Features
Quality
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
- 2-component design prevents distortion of tube strips
Wells
- Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- Standard 0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options
Frame
- End tabs for easy handling and labeling
- Eliminates strip breakage
- Alphanumeric grid reference to aid well and sample identification
Use

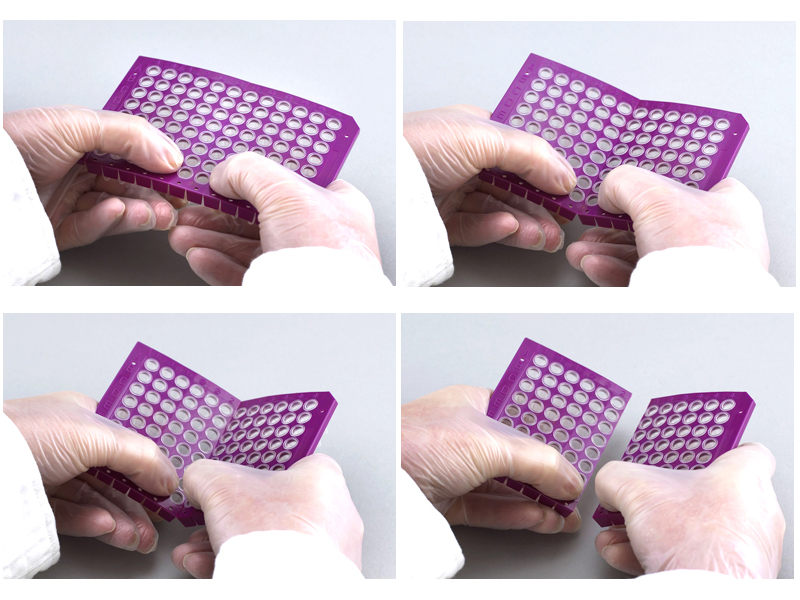

- Rigid PCR plate that can be broken into smaller plate sections
- Fits majority of thermal cyclers
- Compatible with standard multichannel pipettes
Options
- Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, black, and white
- Also available as a black frame with white wells for use with optical assays such as qPCR
- Also available as a FrameStar Breakable Vertically PCR Plate, Low Profile (0.1ml well capacity option)
- 2D coding option; learn more about our barcoding options
Ordering Information
Part Numbers
| FrameStar Breakable Vertically PCR Plate 96 well semi-skirted plate, vertically scored, snaps easily into strips of 8 tubes or part plates, cut corner A12; standard profile, 0.2ml polypropylene wells, polycarbonate frame; working volume: <200µl, total well capacity: 300µl |
|
|---|---|

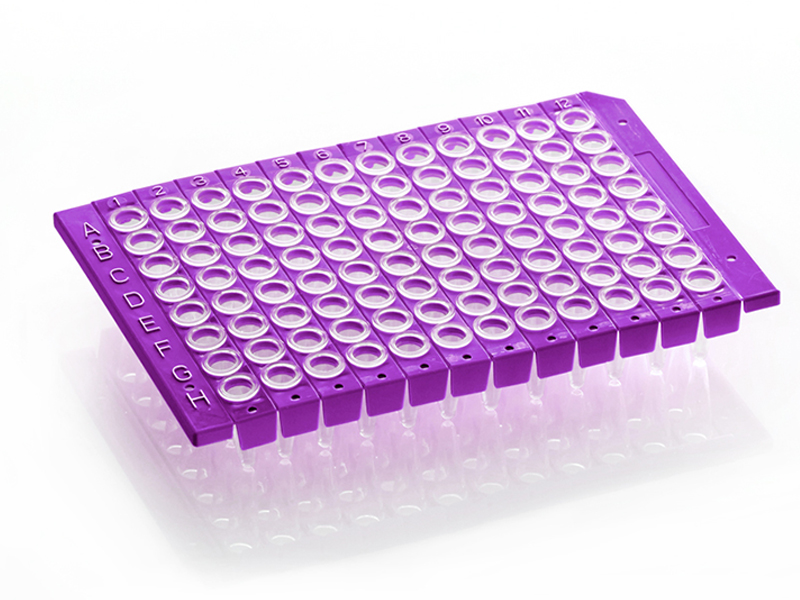

| 4ti-1000/P | clear wells, purple frame; 50 plates |
| 4ti-1000/B | clear wells, blue frame; 50 plates |
| 4ti-1000/C | clear wells, clear frame; 50 plates |
| 4ti-1000/G | clear wells, green frame; 50 plates |
| 4ti-1000/R | clear wells, red frame; 50 plates |
| 4ti-1000/W | clear wells, white frame; 50 plates |
| 4ti-1000/X | clear wells, black frame; 50 plates |
| 4ti-1001 | white wells, black frame; 50 plates |
Compatibility
ABI® /LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
- Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
- qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | ViiA7™
- Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
AGILENT/STRATAGENE
- qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
ANALYTIK JENA/BIOMETRA
- Thermal Cyclers (strips only): TRIO | Tpersonal | T3 Thermocycler
- Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
- qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
BIOER TECHNOLOGIES
- Thermal Cyclers (strips only): GeneQ
- Thermal Cyclers (96 well block): Gene Touch 96
BIO-RAD
- Thermal Cyclers (strips only): Genecycler
- Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
- qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
BIO-RAD MJ RESEARCH
- Thermal Cyclers (strips only): Mini Gradient
- Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
- qPCR Cyclers (96 well block): Chromo4™
CORBETT RESEARCH
- Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
EPPENDORF
- Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
- qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
- Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycler
TAKARA
- Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
- Thermal Cyclers (strips only): 3Prime | 3PrimeG | 3PrimeX
- Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
