Description
Product Details
Key Features
Quality
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
- 2-component design prevents distortion of tube strips
Wells
- Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- 0.1ml (100µl) working volume, with a 0.2ml (200µl) total well capacity when used with sealing options
- Low profile wells, shorter than “standard” profile wells, to decrease the “dead space” between the heated lid of the thermal cycler and the sample in the well
- Eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction
Frame
- End tabs for easy handling and labeling
- Eliminates strip breakage
- Alphanumeric grid reference to aid well and sample identification
Use

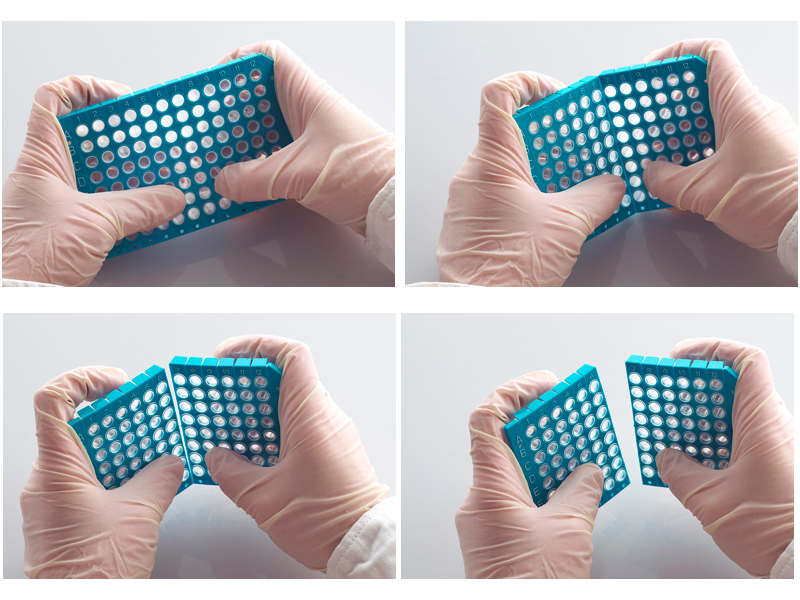

- Rigid PCR plate that can be broken into smaller plate sections
- Fits majority of thermal cyclers
- Compatible with standard multichannel pipette
Options
- Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, black, and white
- Also available as a black frame with white wells for use with optical assays such as qPCR
- Also available as FrameStar Breakable Vertically PCR Plate (0.2ml well capacity option)
- 2D coding option; learn more about our barcoding options
Ordering Information
Part Numbers

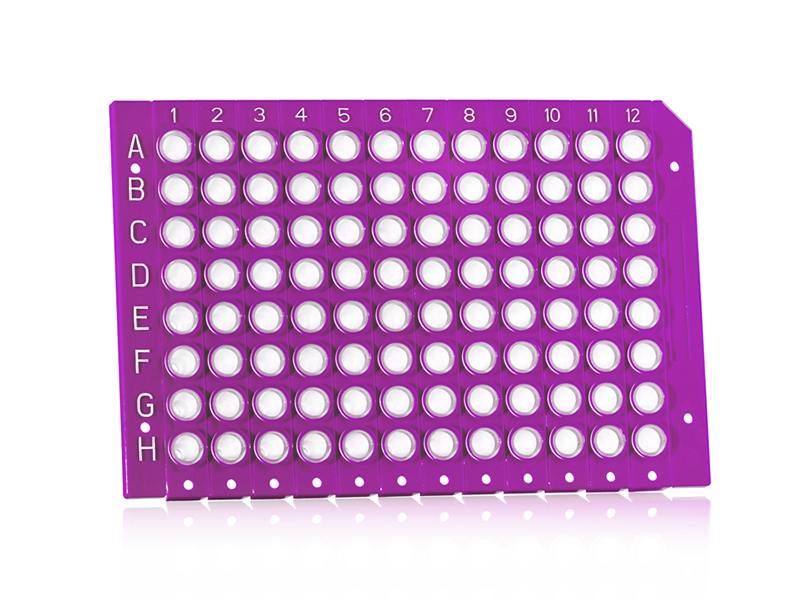

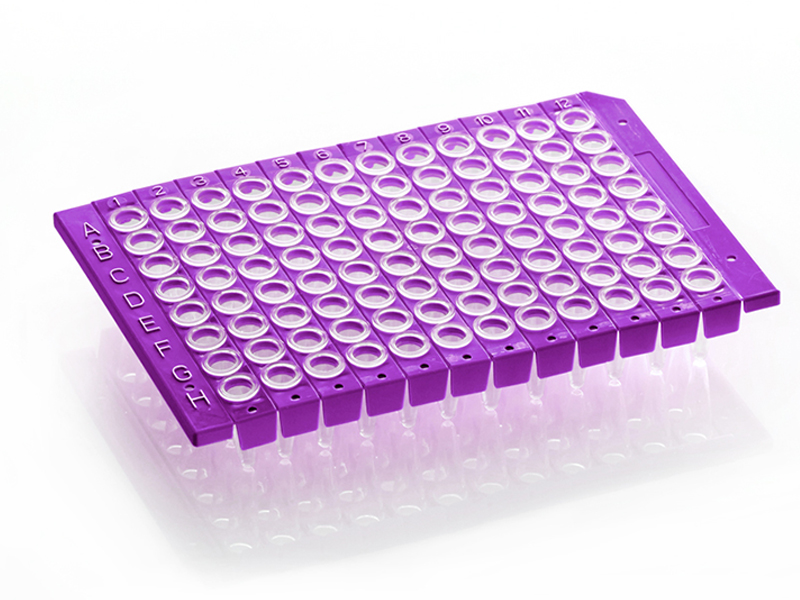

| FrameStar Breakable Vertically PCR Plate, Low Profile 96 well semi-skirted plate, vertically scored, snaps easily into strips of 8 tubes or part plates, cut corner A12; low profile, 0.1ml polypropylene wells, polycarbonate frame; working volume: <100µl, total well capacity: 200µl |
|
|---|---|
| 4ti-1200/P | clear wells, purple frame; 50 plates |
| 4ti-1200/B | clear wells, blue frame; 50 plates |
| 4ti-1200/C | clear wells, clear frame; 50 plates |
| 4ti-1200/G | clear wells, green frame; 50 plates |
| 4ti-1200/R | clear wells, red frame; 50 plates |
| 4ti-1200/W | clear wells, white frame; 50 plates |
| 4ti-1200/X | clear wells, black frame; 50 plates |
| 4ti-1201 | white wells, black frame; 50 plates |
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
- Thermal Cyclers (96 well FAST block): GeneAmp® 9800 FAST | Verity FAST
- qPCR Cyclers (96 well standard block): StepOne
- qPCR Cyclers (96 well FAST block): 7500 FAST | 7900 HT FAST | ViiA7™
AGILENT/STRATAGENE
- Thermal Cyclers (96 well block): Robocycler Gradient
- qPCR Cyclers (96 well block): AriaMx
BIO RAD
- Thermal Cyclers (96 well block): C1000 Touch | S1000
- qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect
BIO-RAD MJ RESEARCH
- Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/ 240™
- qPCR Cyclers (strips only): MiniOpticon
- qPCR Cyclers (96 well block): Opticon2™
EPPENDORF
- Thermal Cyclers (strips only): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/ X2e
- qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
- Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycler
TAKARA
- Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
- Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
- qPCR Cyclers (96 well block): Quantica
