Description
Product Details
Key Features
Quality
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
- Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- <0.2ml (200µl) working volume, 0.3ml (300µl) total well capacity
Frame
- Cut corner at A12
- Rigid polycarbonate frame for added mechanical stability
- Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
- Improved seal integrity due to thermal stability of frame
- Alphanumeric grid reference to aid well and sample identification
Use
- Perfect for ABI® thermal cyclers & sequencers
- Recommended for low volume PCR
- Ideal for use with robotic systems
- Compatible with standard multichannel pipettes
Options
- Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, and black
- Also available as a black frame with white wells for optimum signal-to-noise ratio when using fluorescent based assays
- Also available as a clear frame with frosted wells for use with ABI®/LifeTechnologies® qPCR instruments
- Ultra-low DNA binding option available (4ti-LB0770/C) for sensitive applications with ultra-low DNA input and for maximum DNA recovery after low temperature storage and high temperature incubation; learn more about our low binding range
- Ethylene oxide treated option available (4ti-OX770C/SBC) for forensic use; learn more about our ethylene oxide treated range
- Available barcoded upon request; learn more about our barcoding options
- FrameStar 96 Lid (4ti-0289) available
Low DNA Binding Plates
- Azenta Life Sciences offer low binding products, recommended to support sensitive techniques such as qPCR and Next Generation Sequencing (NGS), as well as storage of samples.
- Manufactured using selected low-bind polymers, DNA loss is minimized during incubation and sample transfer, making it the ideal solution for use in applications with low DNA input.
- Low binding feature results from selected low-bind polymers, no coating is used to achieve the binding characteristics. No contamination or modification of the samples.
- Tested under a broad temperature range. Maximum DNA recovery after low temperature storage and high temperature incubations.
- No detectable DNA loss during incubation steps and sample transfer in NGS sample prep and library construction. Ideally suited for sensitive applications with ultra-low nucleic acid input.
Ordering Information
Part Numbers
| FrameStar 96 Well Semi-Skirted PCR Plate, ABI® Style Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner A12; working volume: <200µl, total well capacity: 300µl; designed for use on all major cyclers, including ABI® instruments with standard 96 well blocks |
||
|---|---|---|

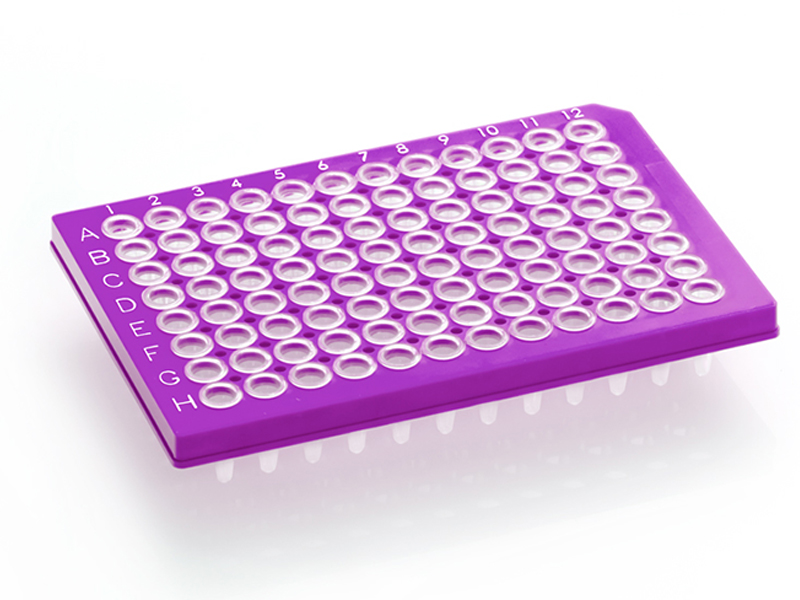

| 4ti-0770 | clear wells, purple frame; 50 plates | |

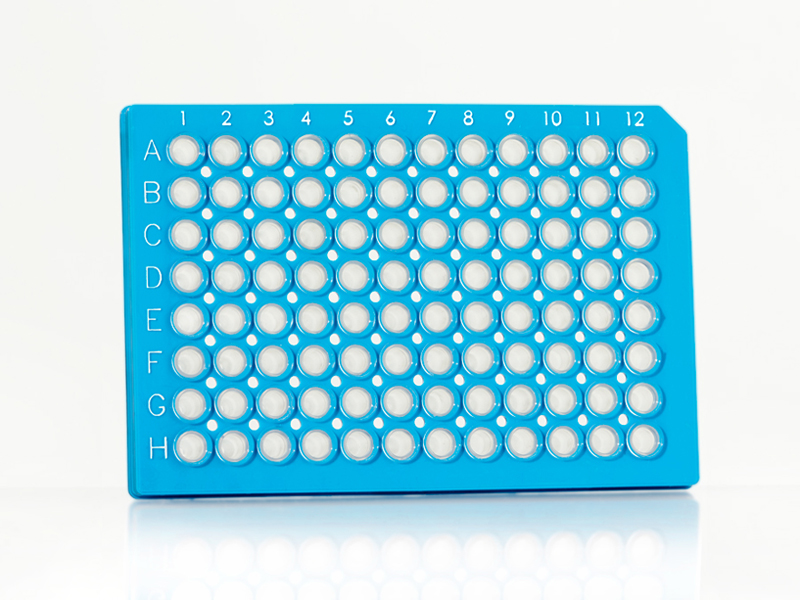

| 4ti-0770/B | clear wells, blue frame; 50 plates | |

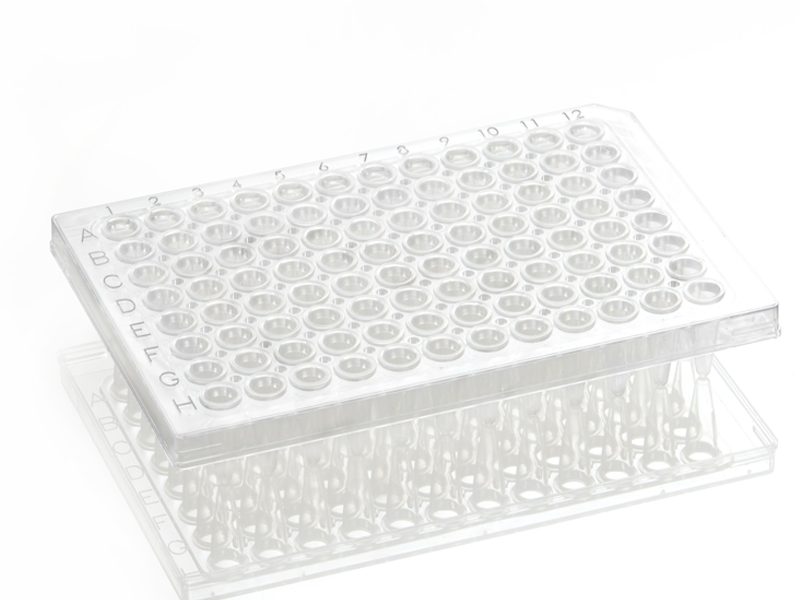

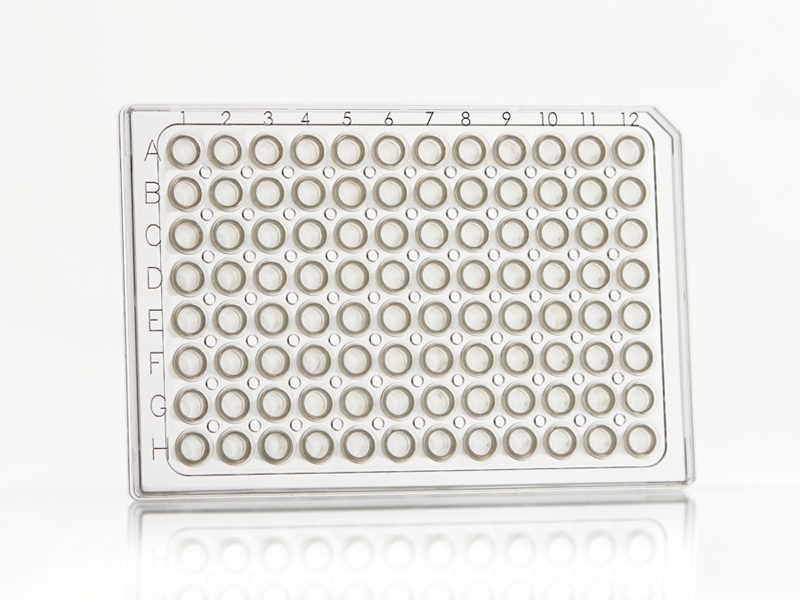

| 4ti-0770/C | clear wells, clear frame; 50 plates | |
| 4ti-0770/C/10P | clear wells, clear frame; 10 plates | |

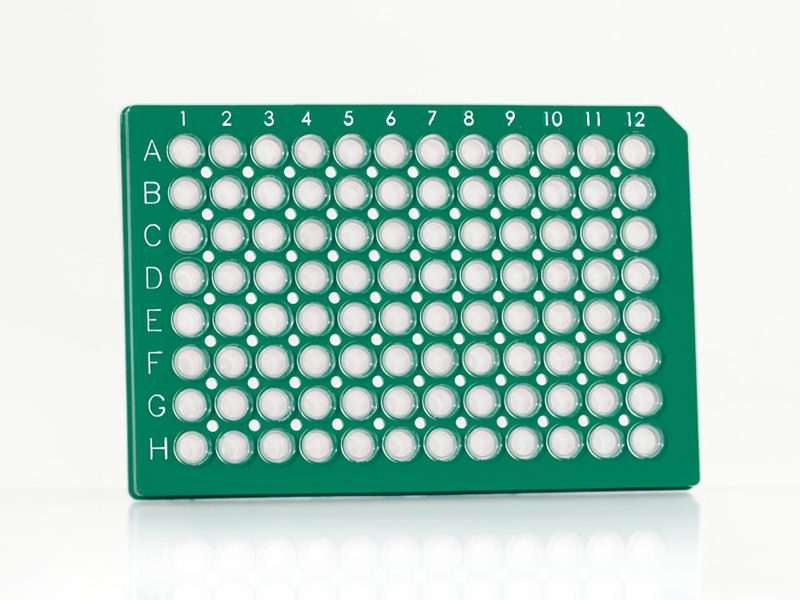

| 4ti-0770/G | clear wells, green frame; 50 plates | |

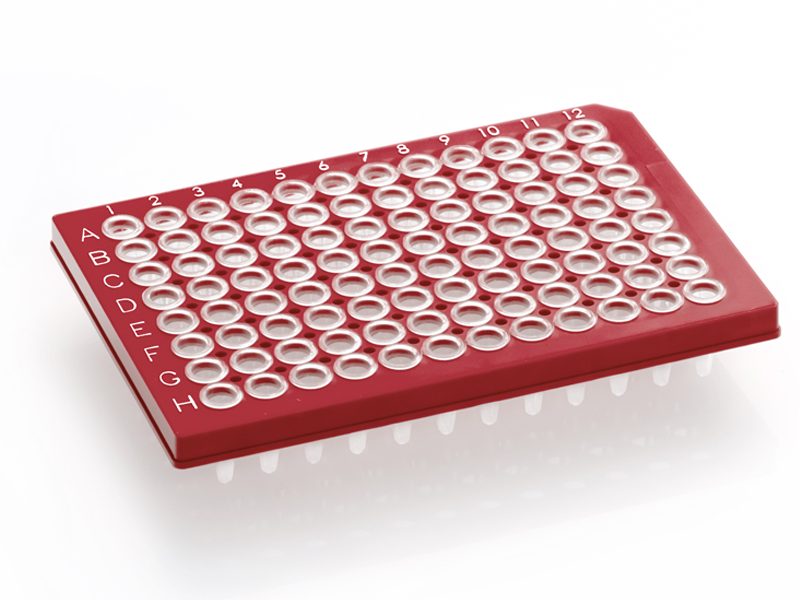

| 4ti-0770/R | clear wells, red frame; 50 plates | |
| 4ti-0770/X | clear wells, black frame; 50 plates | |

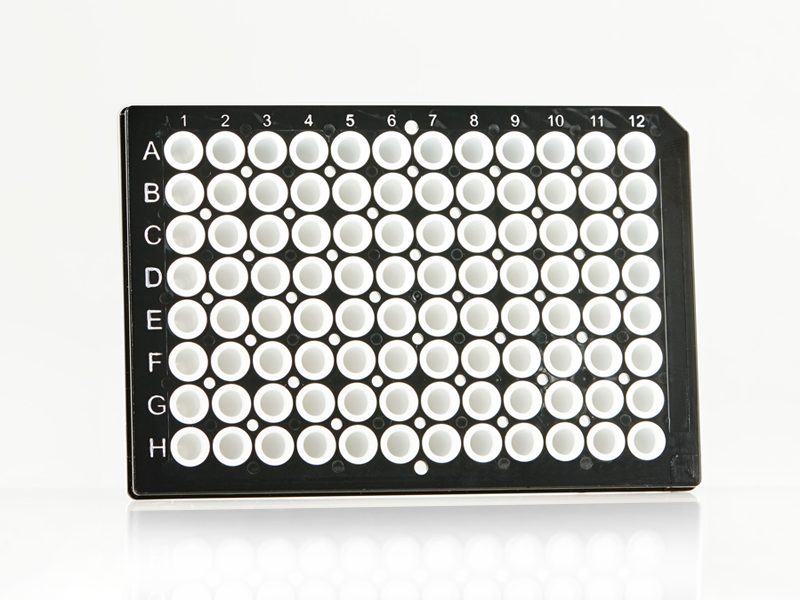

| 4ti-0771 | white wells, black frame; 50 plates | |

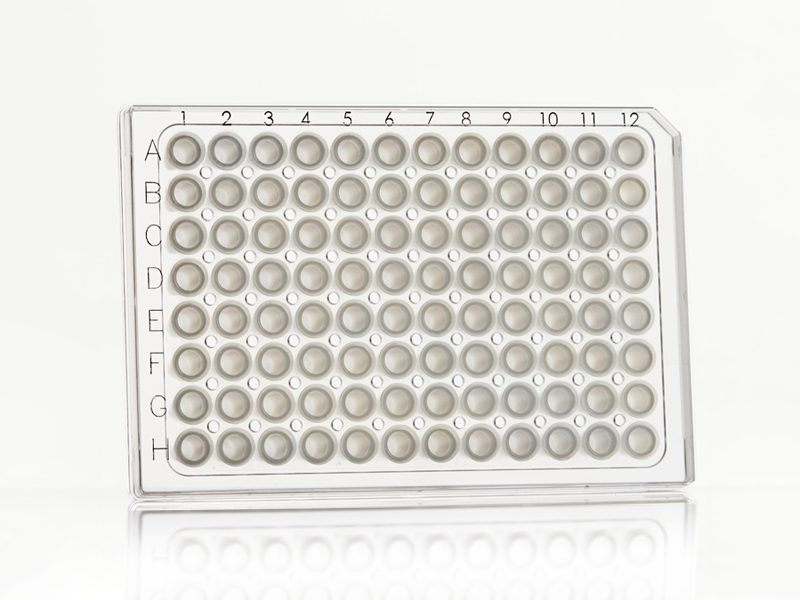

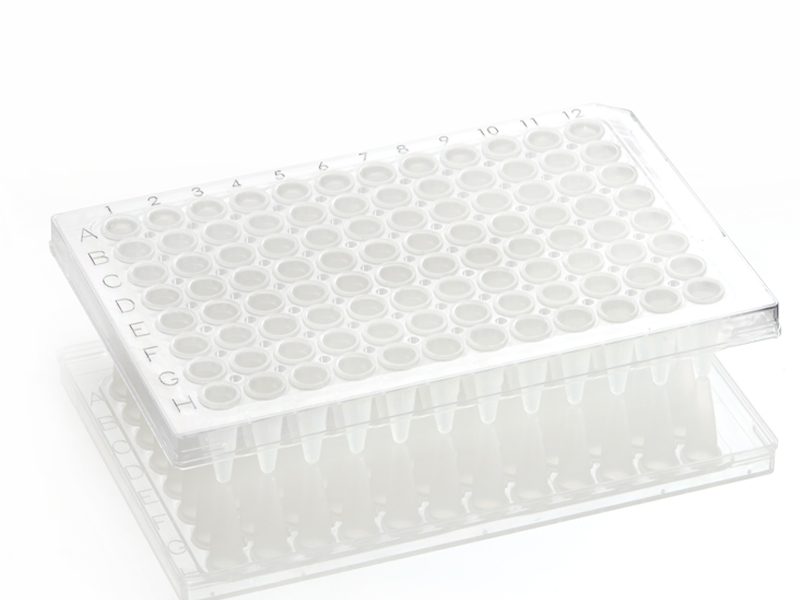

| 4ti-0772 | frosted wells, clear frame; 50 plates | |
| 4ti-0772/10P | frosted wells, clear frame; 10 plates | |
| 4ti-OX770C/SBC | 4ti-0770/C for forensic use, ethylene oxide treated, single barcoded; 20 plates | |
| 4ti-LB0770/C | 4ti-0770/C, with low DNA binding properties; 50 plates | |
| Lids | |
|---|---|
| 4ti-0289 | FrameStar 96 Lid (4ti-0289), for use with the FrameStar 96 Well Semi-Skirted Plates, ABI® Style range; 50 lids |
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
- Thermal Cyclers (96 well standard block): Verity | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
- qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
- Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
AGILENT/STRATAGENE
- qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
- Fragment Analyzer Systems: 5200 | 5300 | 5400
ANALYTIK JENA/BIOMETRA
- Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient / XL | Trobot 96 | SpeedCycler2 (SP, SPR)
- qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
BIOER TECHNOLOGIES
- Thermal Cyclers (96 well block): Gene Touch 96
BIO RAD
- Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
- qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
BIO-RAD MJ RESEARCH
- Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
- qPCR Cyclers (96 well block): Chromo4™
CORBETT RESEARCH
- Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
EPPENDORF
- Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
- qPCR Cyclers (96 well block): Mastercycler™ ep realplex
PEQLAB/VWR
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycler
TAKARA
- Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
- Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
