Description
Product Details
Key Features
Quality
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
- Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- <0.1ml (100µl) working volume, 0.2ml (200µl) total well capacity
- Low profile wells, shorter than “standard” profile wells, to decrease the “dead space” between the heated lid of the thermal cycler and the sample in the well
- Eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction
Frame
- Rigid polycarbonate frame for added mechanical stability
- Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
- Improved seal integrity due to thermal stability of frame
- Alphanumeric grid reference to aid well and sample identification
Use
- Recommended for low volume PCR
- Compatible with standard multichannel pipettes
Options
- Available with the following frame color options for the clear well variety: purple, blue, and clear
- Also available as a black frame with white wells for optimum signal-to-noise ratio when using fluorescent based assays
Ordering Information
Part Numbers
| FrameStar 96 Well Non-Skirted PCR Plate, Low Profile Low profile, 0.1ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <100µl, total well capacity: 200µl; universal non-skirted, low profile plate designed for use on all major thermal cyclers |
|
|---|---|

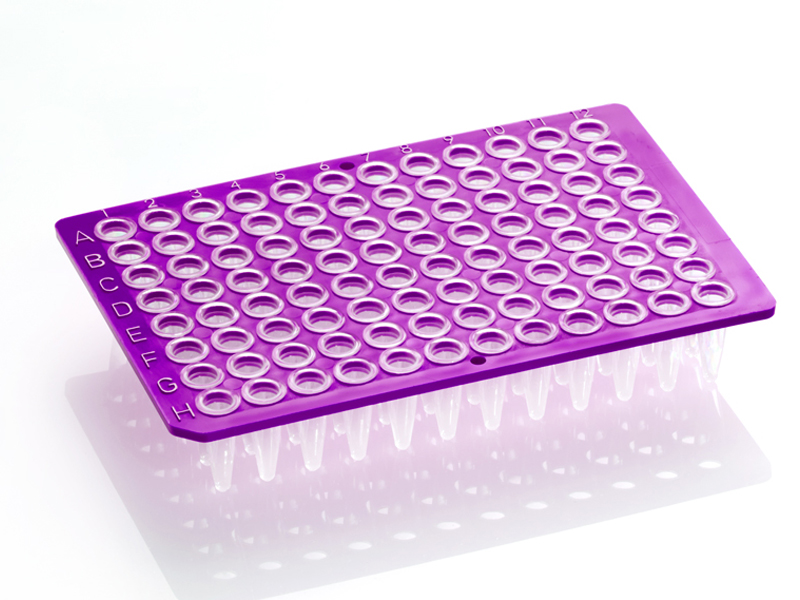

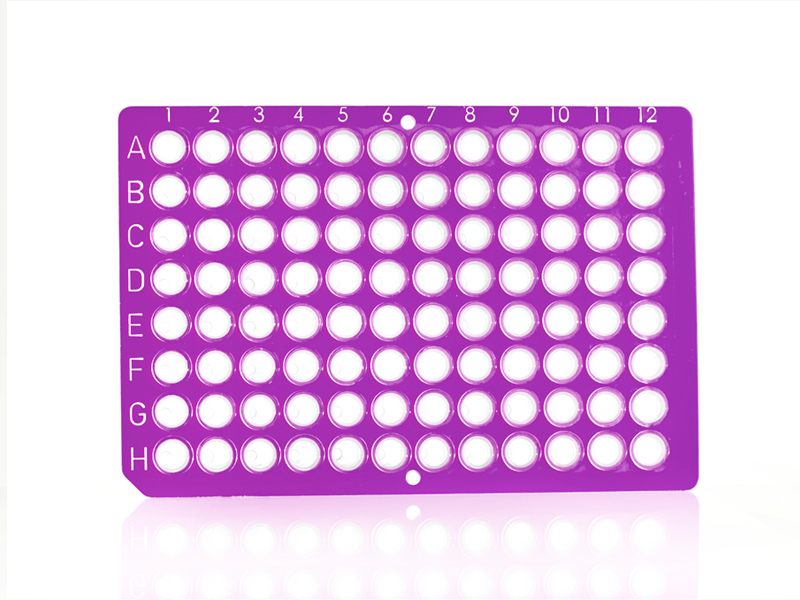

| 4ti-0720 | clear wells, purple frame; 50 plates |

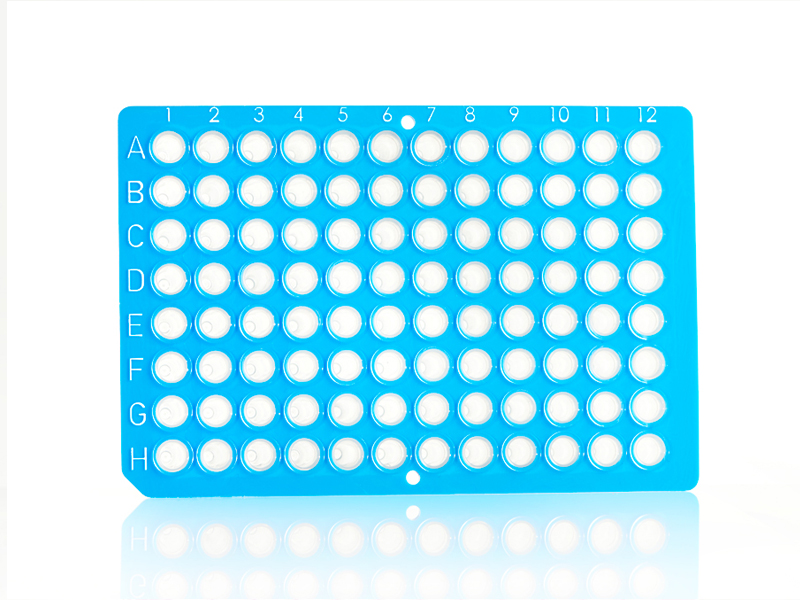

| 4ti-0720/B | clear wells, blue frame; 50 plates |

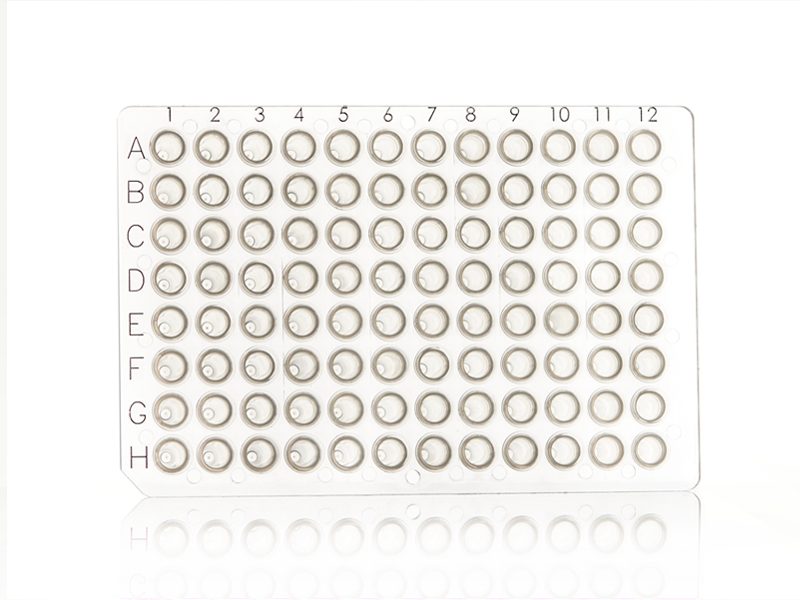

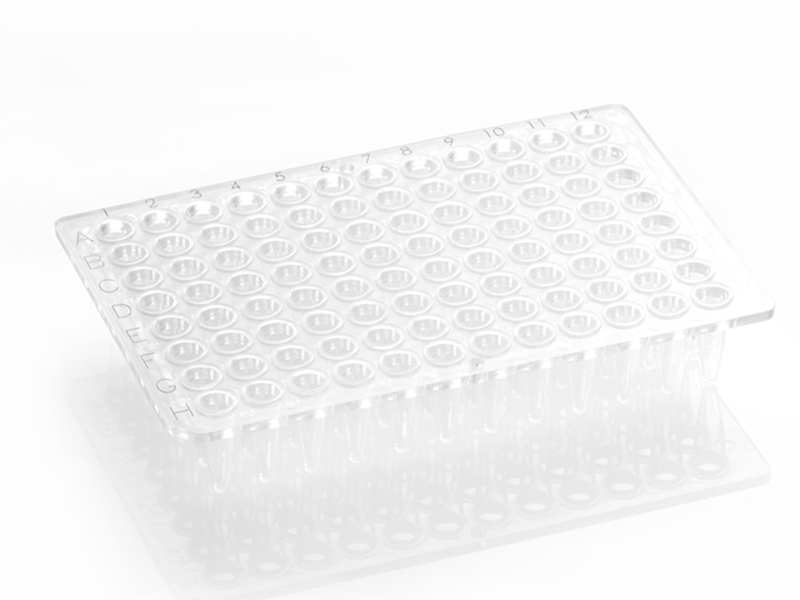

| 4ti-0720/C | clear wells, clear frame; 50 plates |

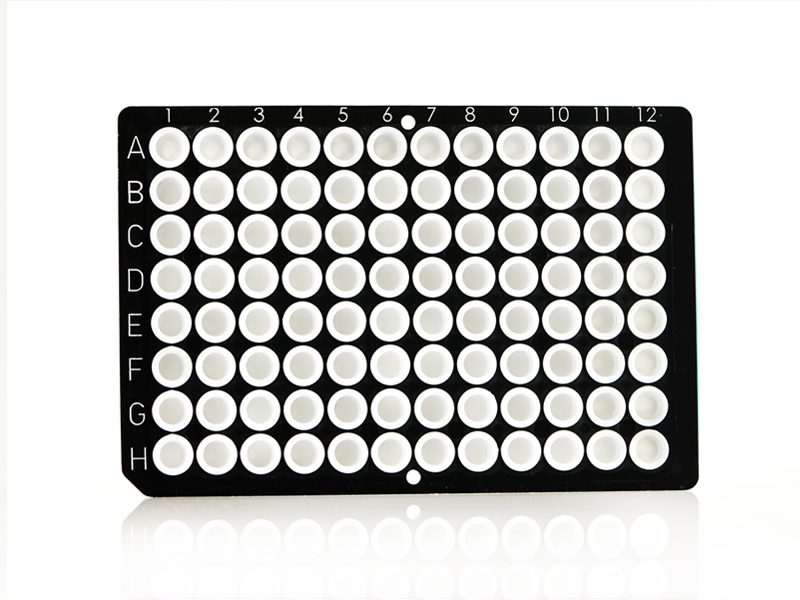

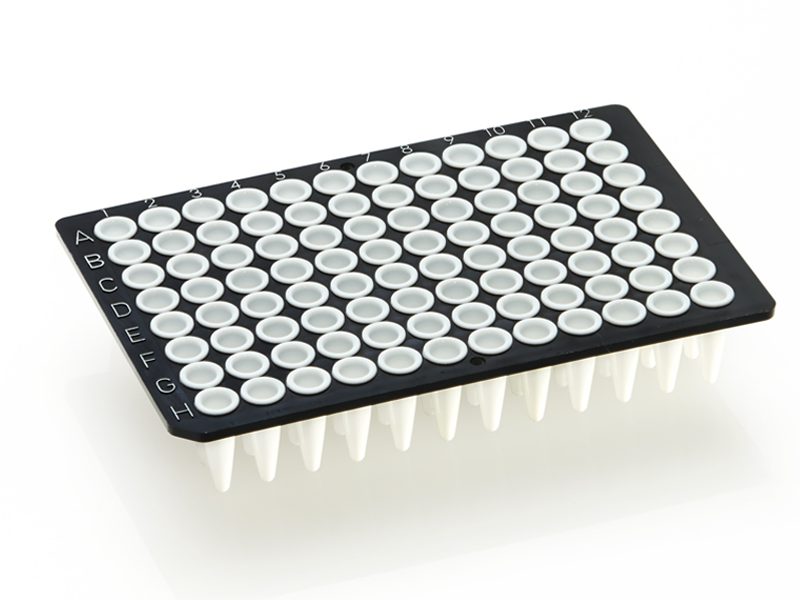

| 4ti-0721 | white wells, black frame; 50 plates |
Compatibility
AGILENT/STRATAGENE
- qPCR Cyclers (96 well block): AriaMx
ANALYTIK JENA/BIOMETRA
- Thermal Cyclers (96 well block): Trobot 96 | SpeedCycler 2 (SP, SPR)
BIO-RAD
- Thermal Cyclers (96 well block): C1000 Touch | S1000
- qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect
BIO-RAD MJ RESEARCH
- Thermal Cyclers (96 well block): PTC100™/200™/220™/221™/225™/240™
- qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
EPPENDORF
- Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
- qPCR Cyclers (96 well block): Mastercycler™ ep realplex
GE HEALTHCARE/AMERSHAM
- Thermal Cyclers (96 well block): MegaBACE™ 500 | MegaBACE™ 1000 mark 2
PEQLAB/VWR
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycle
TECHNE
- Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
- qPCR Cyclers (96 well block): Quantica
