Description
Product Details
Key Features
Quality
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
- Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- <0.2ml (200µl) working volume, 0.3ml (300µl) total well capacity
Frame
- Rigid polycarbonate frame for added mechanical stability
- Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
- Improved seal integrity due to thermal stability of frame
- Alphanumeric grid reference to aid well and sample identification
Use
- Recommended for low volume PCR
- Compatible with standard multichannel pipettes
Options
- Available with the following frame color options for the clear well variety: purple, blue, clear, green, red
- Also available as a black frame with white wells for optimum signal-to-noise ratio when using fluorescent based assays
Ordering Information
Part Numbers
| FrameStar 96 Well Non-Skirted PCR Plate Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200µl, total well capacity: 300µl; universal non-skirted plate designed for use on all major thermal cyclers |
|
|---|---|

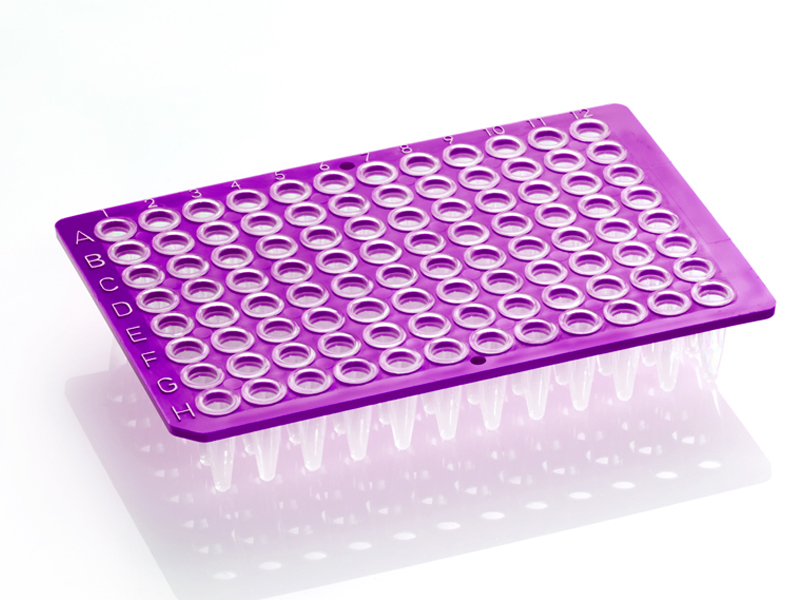

| 4ti-0710 | clear wells, purple frame; 50 plates |

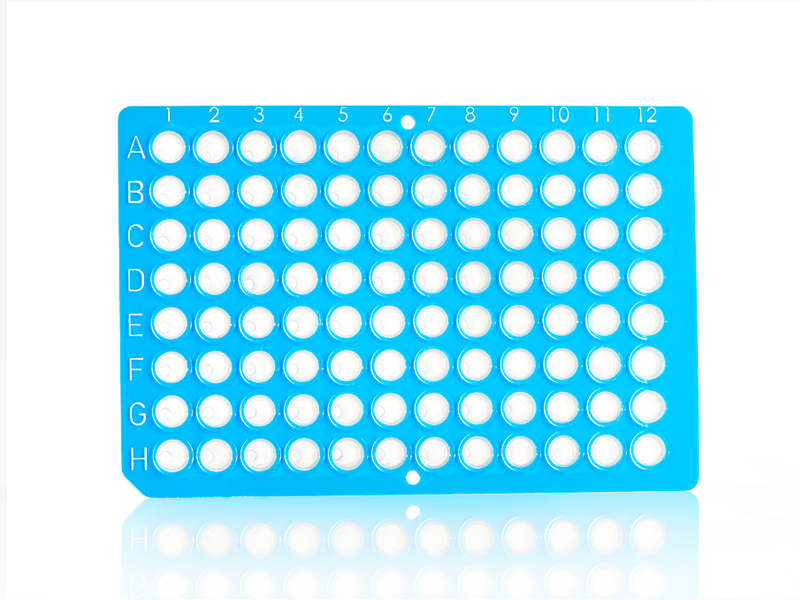

| 4ti-0710/B | clear wells, blue frame; 50 plates |

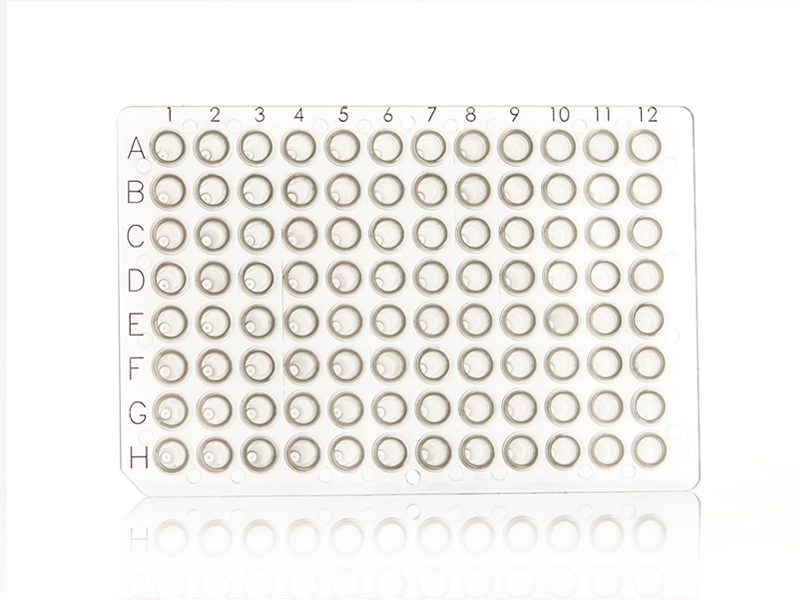

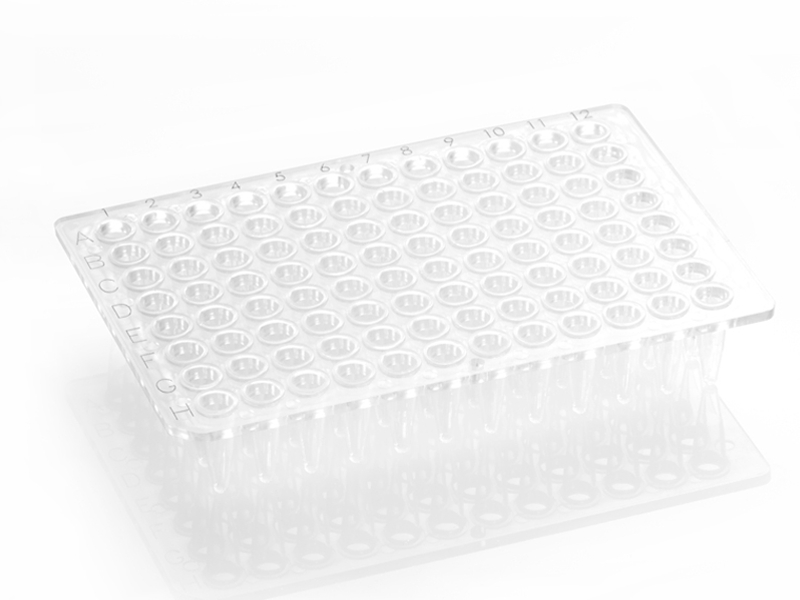

| 4ti-0710/C | clear wells, clear frame; 50 plates |

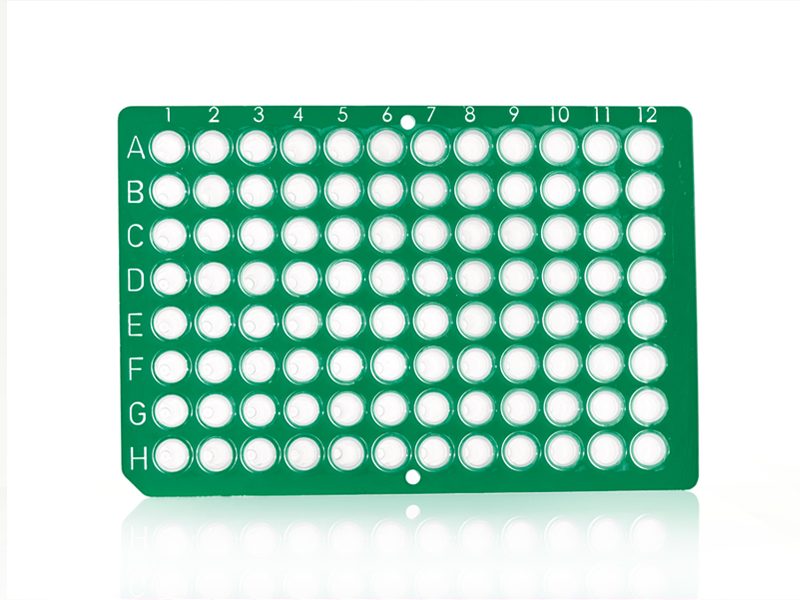

| 4ti-0710/G | clear wells, green frame; 50 plates |

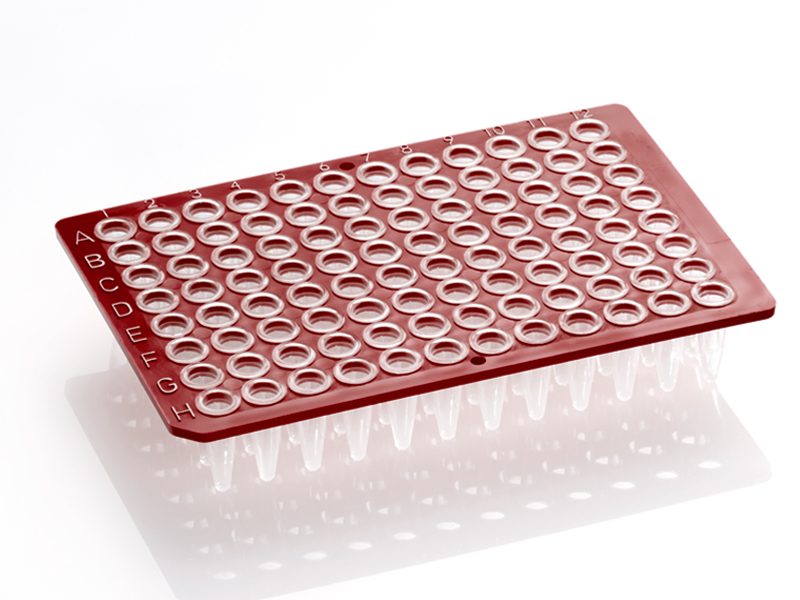

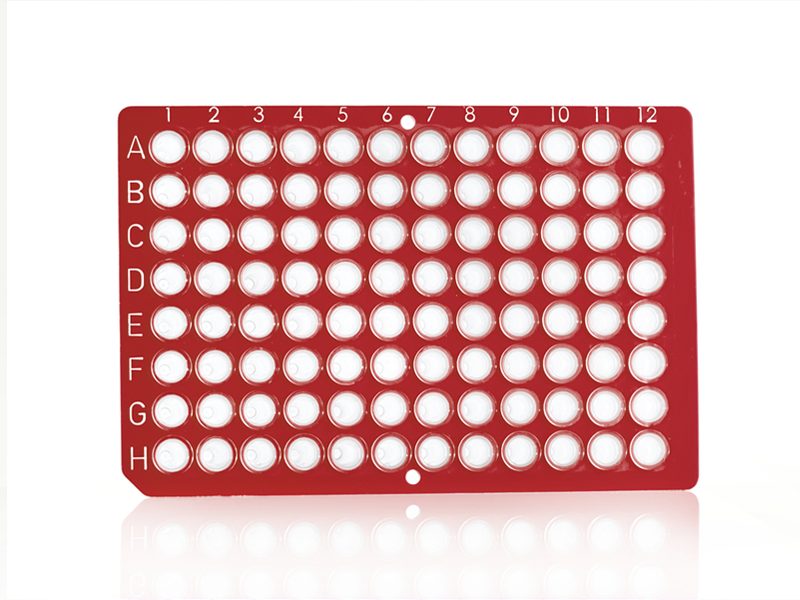

| 4ti-0710/R | clear wells, red frame; 50 plates |

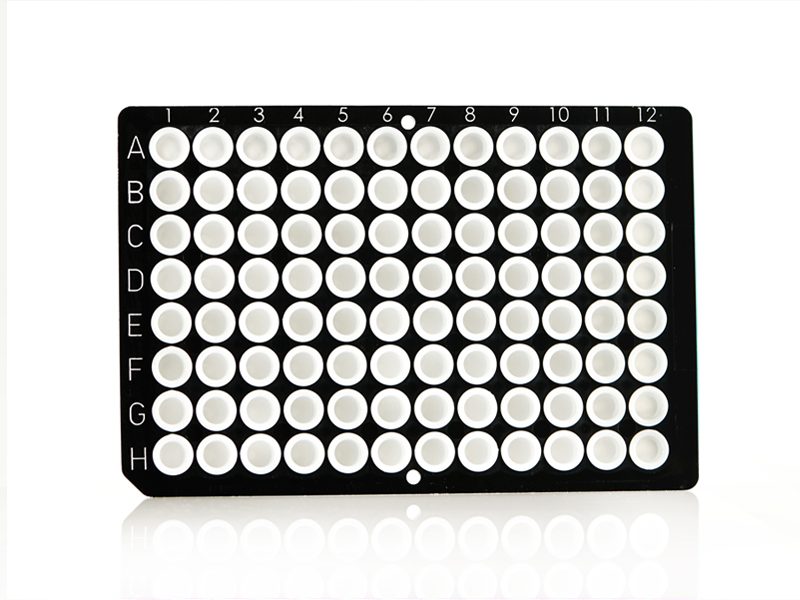

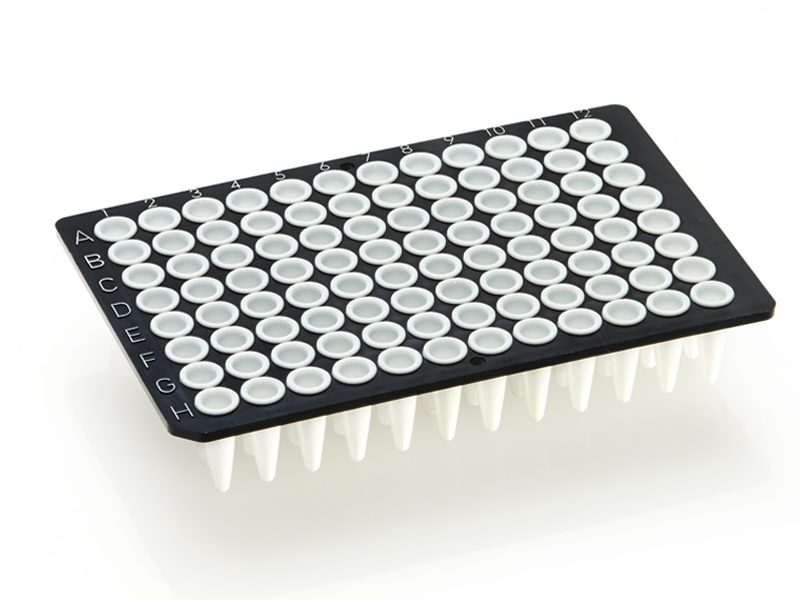

| 4ti-0711 | white wells, black frame; 50 plates |
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
- Thermal Cyclers (96 well standard block): GeneAmp® 2700/2720/9600/9700
- qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT
- Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
AGILENT/STRATAGENE
- Thermal Cyclers (96 well block): Surecycler 8800 | Robocycler Gradient
- qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
ANALYTIK JENA/BIOMETRA
- Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler 2 (SP, SPR)
- qPCR Cyclers (96 well block): qTower™/G/touch | Toptical
BIOER TECHNOLOGIES
- Thermal Cyclers (96 well block): Gene Touch 96
BIO-RAD
- Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
- qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
BIO-RAD MJ RESEARCH
- Thermal Cyclers (96 well block): Personal | PTC100™/200™/220™/221™/225™/240™
- qPCR Cyclers (96 well block): Chromo4™
CORBETT RESEARCH
- Thermal Cyclers (96 well block): (Quiagen) Palm Cycler
EPPENDORF
- Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
- qPCR Cyclers (96 well block): Mastercycler™ ep realplex
PEQLAB/VWR
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycler
TAKARA
- Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
- Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
