Description
Product Details

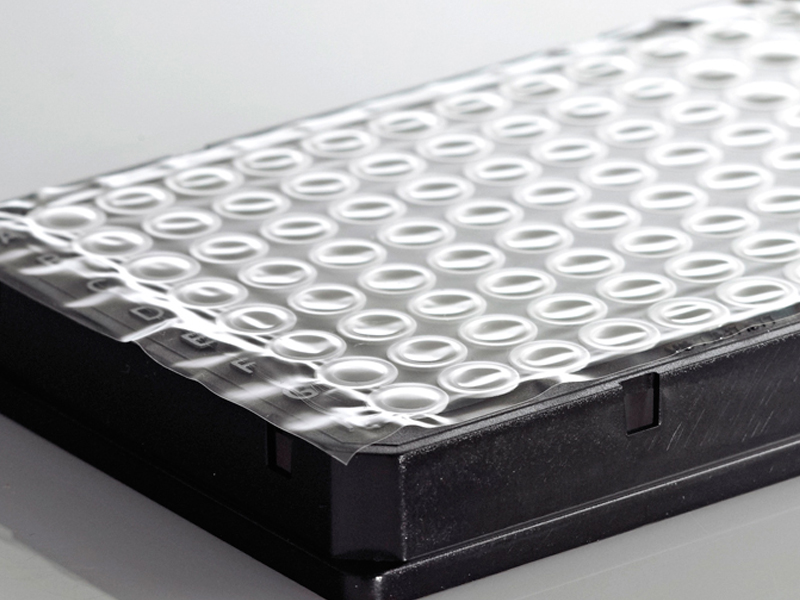

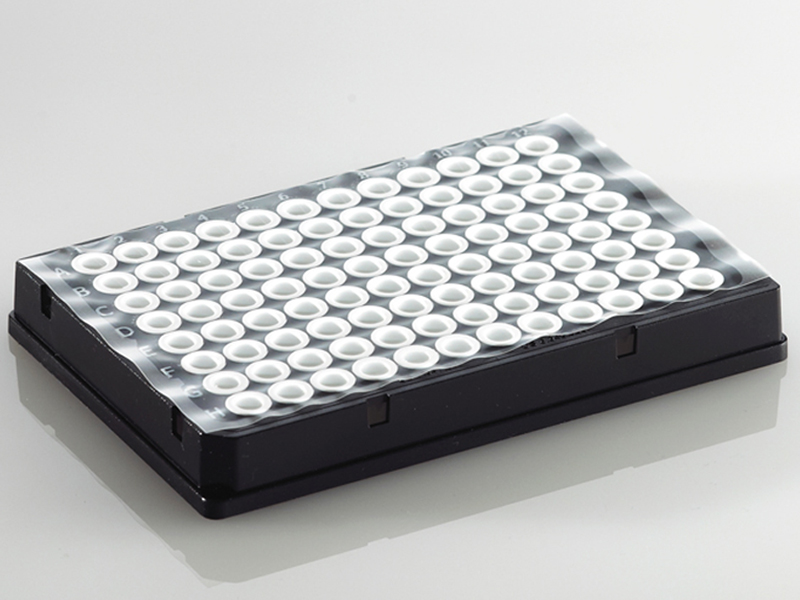

Heat sealing offers a 100% effective method for plate sealing for a complete seal integrity, as well as being quick and cost effective. Our Clear Weld Heat Seal is an optically clear polymer film forming a permanent seal to polypropylene plates. The optical clarity of this seal enables its use for sealing plates required for imaging use, including fluorescent detection methods such as qPCR and colorimetric assays.
The Clear Weld Heat Seal forms a complete seal to a plate, enabling both low and very high temperature uses, including low temperature storage and high temperature incubations. This seal is suitable for PCR/qPCR, even without the use of a pressurized heated lid, and is 100% effective when used in water bath thermal cyclers.
The permanent nature of this 100% effective seal renders it suitable for the storage and disposal of hazardous material. Clear Weld Heat Seal demonstrates a good solvent resistance and can be utilized for long term compound storage. Samples can be accessed by pre-piercing with a blade, needle or our Pierce Plate (4ti-0398).
This seal is available as sheets, for use with manual and semi-automated sealers, such as our Semi-Automated Sheet Heat Sealer. Also available in multiple roll formats compatible with specified automated heat sealers, such as our Automated Roll Heat Sealer.
Key Features
Quality & Properties
- Permanent seal
- Difficult to pierce
- Non-peelable
- Seal integrity range: -80°C to 110°C
- DMSO and solvent resistant
- Autoclavable (121°C)*
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Use
- Applications: suitable for PCR and qPCR, long term storage, and disposal of hazardous materials
- Seals polypropylene plates
- Compatible with water bath thermal cyclers
Options
- Sheet format: 125 x 78mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates, from 12 well to 1536 well
- Roll format: available in a variety of roll dimensions, to suit your choice of automatic heat sealing equipment
- Non-sterile as standard; sterilization available upon request
Ordering Information
Part Numbers
| Clear Weld Heat Seal Optically clear heat sealing film, non-peelable, difficult to pierce; suitable for qPCR, optical applications and storage |
||
|---|---|---|
| 4ti-0573 | roll (610m x 78mm, approx. 5,000 seals)¹; 1 roll | |
| 4ti-0573/122 | roll (122m x 78mm, approx. 1,000 seals)¹; 1 roll | |
| 4ti-0573/S | sample roll (5m x 78mm)¹; 1 sample roll | |
| 4ti-0574 | roll (500m x 115mm)²; 1 roll | |
| 4ti-0574/S | sample roll (5m x 115mm)²; 1 sample roll | |
| 4ti-0575** | sheets (125 x 78mm); 100 sheets | |
