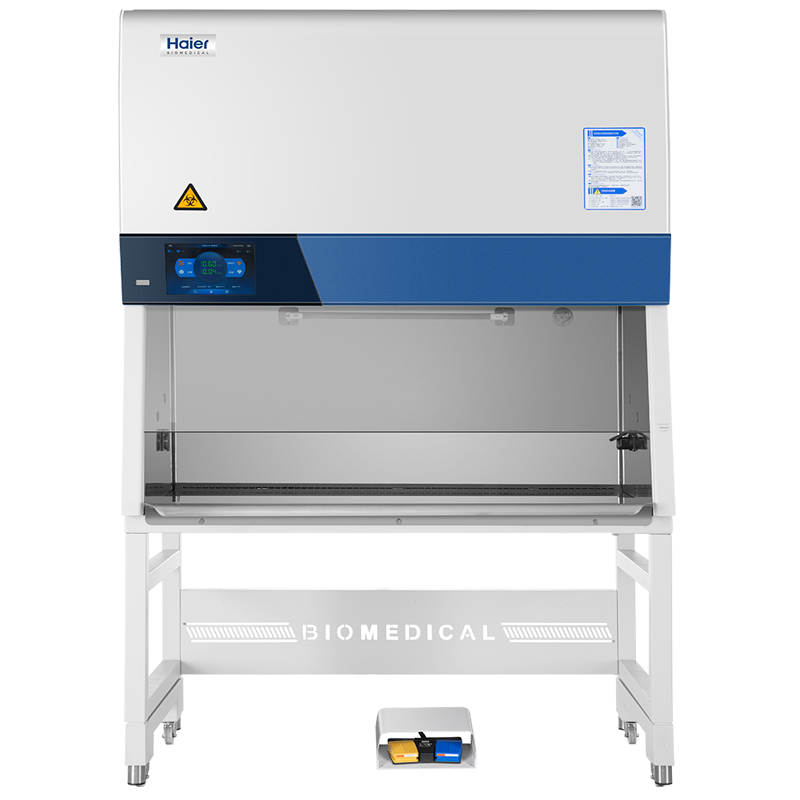

Biological Safety Cabinet (Touchscreen)

Biological Safety Cabinet (Touchscreen)

The X series of standard Class II microbiological safety cabinets are suitable for basic cell biology, microbiology, biomedicine, biosafety laboratories and other laboratories. It is the most basic protection and isolation equipment for biosafety.

Category:

Description

Dual DC Fans
  • The dual DC fans meet the low-noise, energy-saving and high-reliability requirements
Utilizing Intelligent Constant Air Speed Design to Monitor the Downward Airflow and the Inlet Airflow in Real-Time.
  • The dual air speed sensors adjust the fan speed through a microcomputer system so as to maintain constant air speed inside the cabinet
Adopting Ultralow Penetration Air Filters (ULPA)
  • Ensuring a cleanness grade conforming to Class 1 of the American standard FED STD 209E (Class 3 of IS014644-1) and using pressure sensors to monitor the service life of the filters in real-time to ensure superior accuracy and efficiency
Adopting an Intelligent Interlock Design to Avoid the Risk of Disoperation;
  • With an Operational Front Window Interlocking with the UV Lamp, LED Lamp and Fan Intelligently to Ensure Better Security
One-button UV Lamp Timer
  • Enabling the memory setting of the user’s UV lamp usage habits for convenient one-key start-up of the UV lamp timing function

Specifications

Specifications

Model Power Supply (V/Hz) Power of Blower (W) Downflow Velocity (m/s) Exhaust Filter Typical Efficiency Main Filter Typical Efficiency Airflow Circulation Size(Width) Blowers Sash Opening
HR1200-IIA2-X 220/60;220/50 DC 120 112 0.3 ULPA,U15,99.9995%@0.12um ULPA,U15,99.9995%@0.12um 70% Downflow, 30% Exhaust 1336mm Dual 1230mm
HR1500-IIA2-X 220/60;220/50 DC 190 112 0.33 ULPA,U15,99.9995%@0.12um ULPA,U15,99.9995%@0.12um 70% Downflow, 30% Exhaust 1636mm Dual 1530mm
HR1800-IIA2-X 220/60;220/50 DC 120 112 0.3 ULPA,U15,99.9995%@0.12um ULPA,U15,99.9995%@0.12um 70% Downflow, 30% Exhaust 1936mm Dual 1830mm

No downloads provided.
