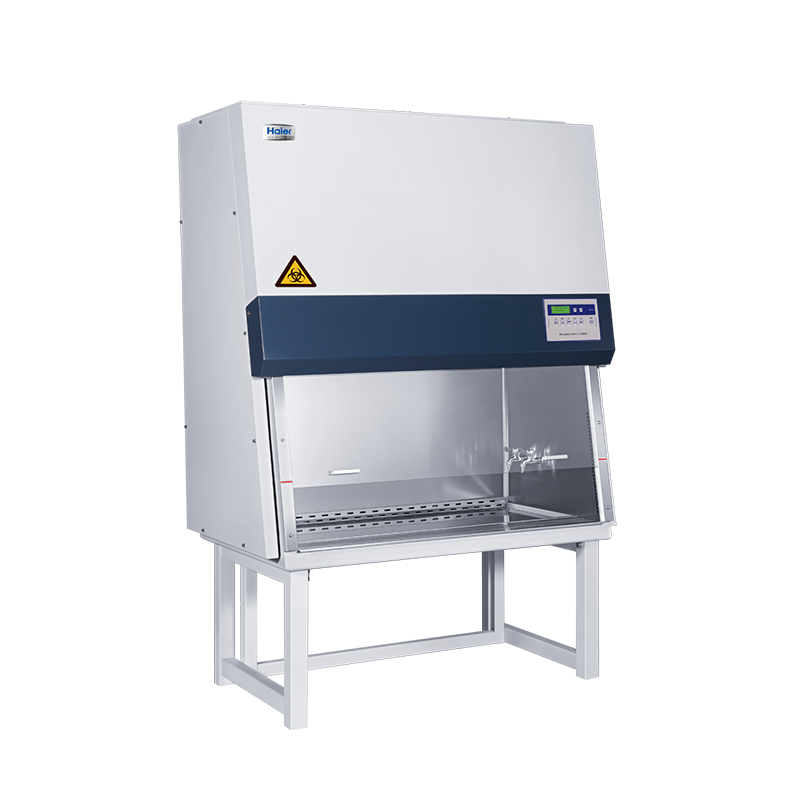

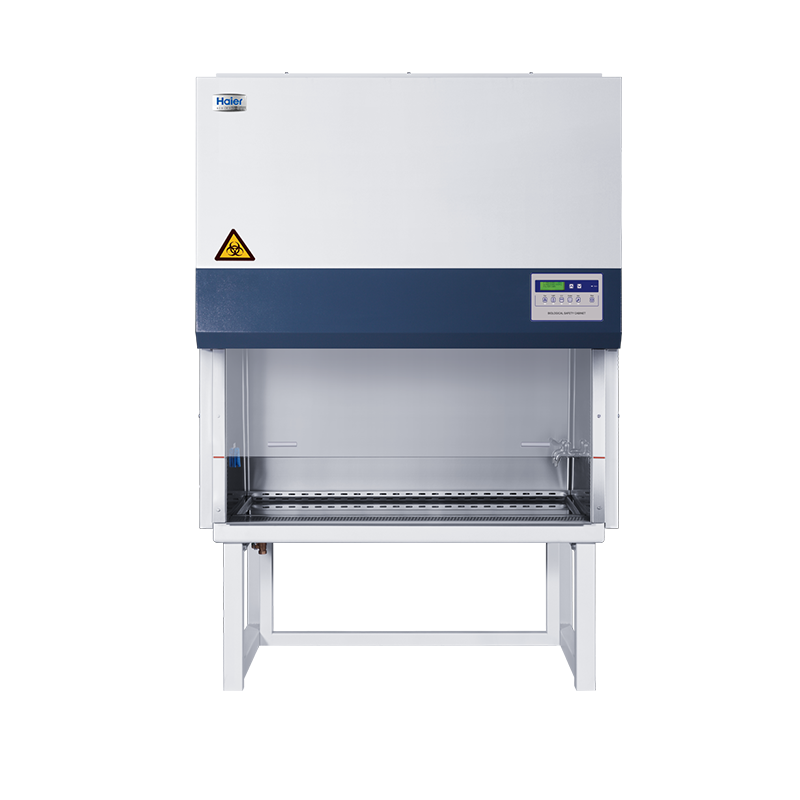

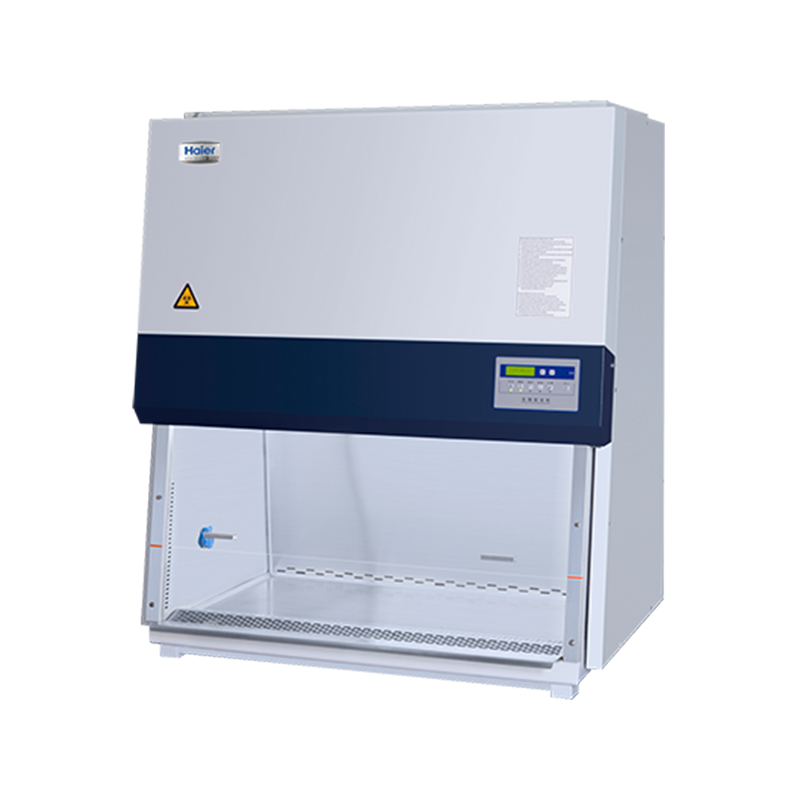

Classic Series Biosafety Cabinet

The Haier Biomedical Biological Safety Cabinet is designed to protect the operator, laboratory environment and samples from being exposed to the infective aerosol produced from samples with bacteria strains, diagnostic materials, and other infective substances. It provides the operator with comfortable and safer working conditions. It is widely used in medical health, disease prevention, food safety, biological pharmacy and environment monitoring.

Category:Biosefty Cabinets Brand: Haier

Description

304 Stainless Steel Operation Platform and Internal Wall

Stainless steel work surface without screws ensures no accumulation of contaminant
Removable air in-flow plate is easy to clean and disinfect
Internal wall is constructed of a single piece stainless steel, with 12mm arc angle corners which allows for more effective cleaning
The volume of liquid tank is over 4L, equipped with outlet valve for convenient cleaning and maintenance
Concaved work surface, waste liquid easily collected
Adjustable stand (0-75mm) without exposed screw thread, reduces risk of contamination

Ultra Low Penetration Air Filtration System

American AAF ULPA filter
Tested to a typical efficiency of 99.9995% for 0.12 micron particles
Provides FED STD 209E class 1 (or ISO14644.1 class 3) clean air to work surface in a stable vertical laminar flow to protect samples
The exhaust ULPA filter traps biohazard particles acquired from the work surface before air is exhausted to the room, offering personnel and environmental protection

High Efficiency Blower System

The blower system is designed for high performance operation, maximum energy efficiency and minimal maintenance
Self cooling system reduces energy consumption while enhancing reliability

Specifications

Model	Power Supply (V/Hz)	Power of Blower (W)	Downflow Velocity (m/s)	Exhaust Filter Typical Efficiency	Main Filter Typical Efficiency	Airflow Circulation	Size(Width)(mm)	Blowers
HR40-IIA2	115/60;220~240/50/60	AC 540/625	0.28;0.3	HEPA ,H14,99.995%@0.3um	ULPA,U15,99.9995%@0.12um	70% Downflow, 30% Exhaust	1360	Single
HR30-IIA2	220~240/50/60	AC 540/625	0.3	HEPA ,H14,99.995%@0.3um	ULPA,U15,99.9995%@0.12um	70% Downflow, 30% Exhaust	1100	Single
HR40-IIB2	220/60;220/50	AC115	0.3	HEPA ,H14,99.995%@0.3um	ULPA,U15,99.9995%@0.12um	100% Exhaust	1360	Single
