Description
Product Details

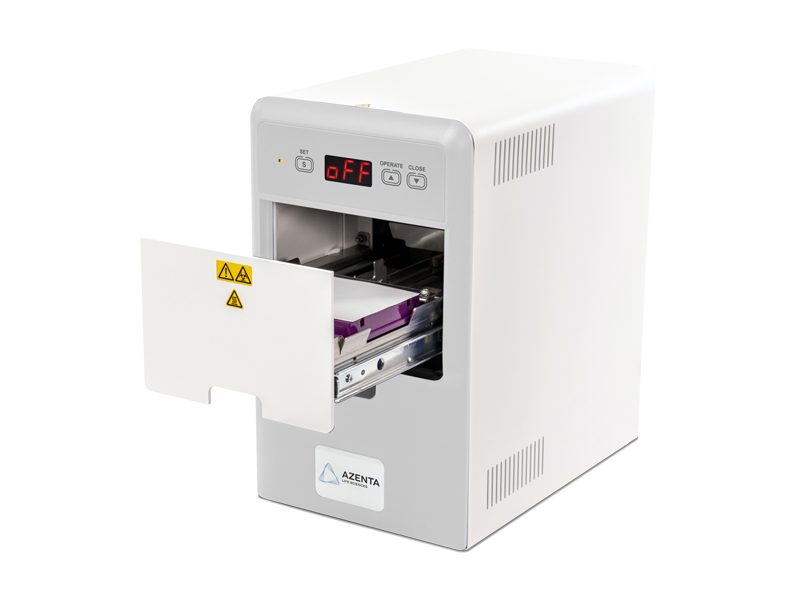

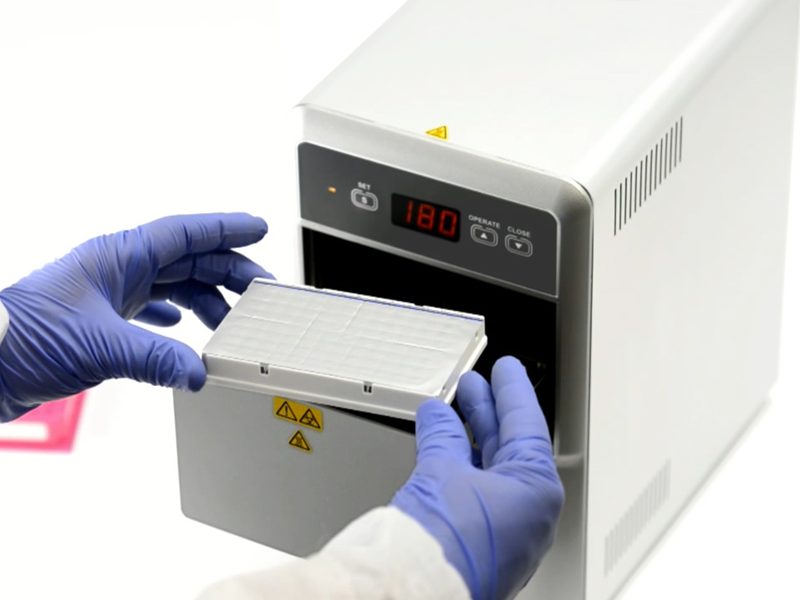

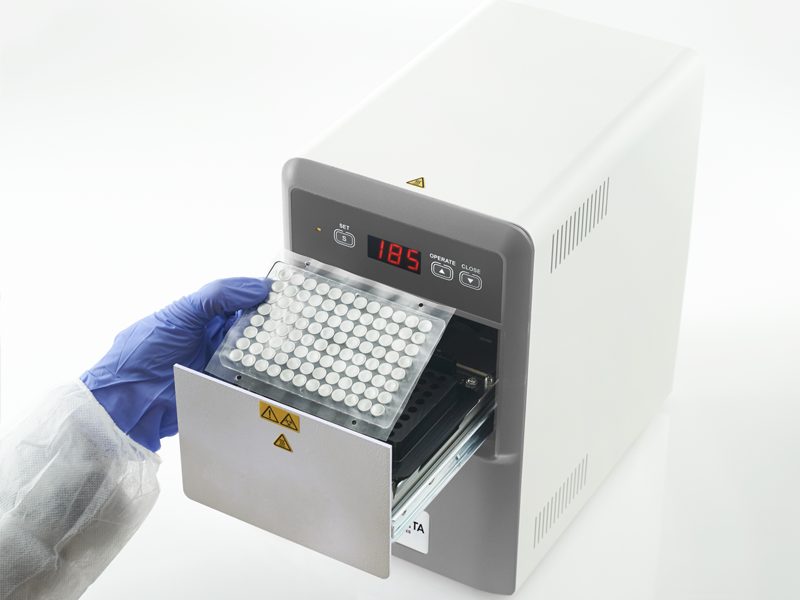

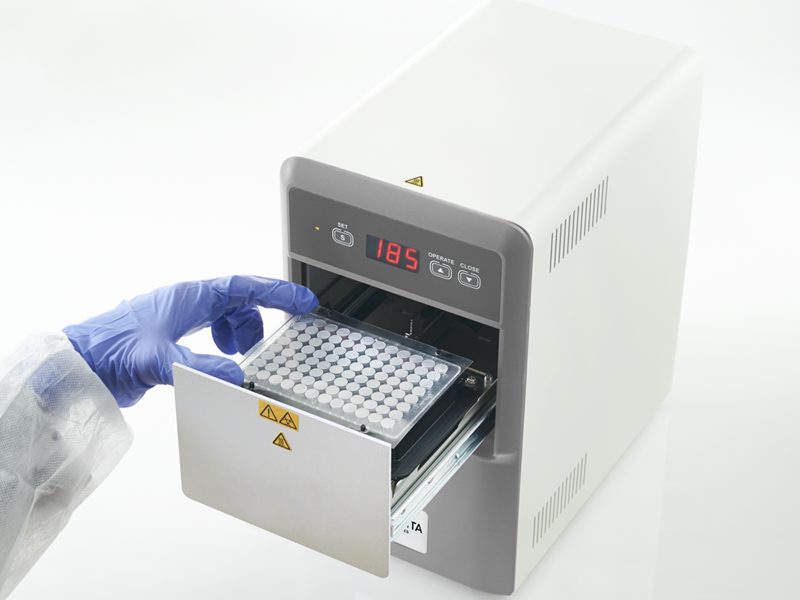

With variable temperature and time settings, sealing conditions are easily optimized to produce a 100% seal, eliminating sample loss. Plate and seal are placed on the holder, the “Operate” button pressed and the drawer automatically closes. The sealing process is controlled by an electric mechanism; this unique feature eliminates operator variation, giving a consistent seal every time and reducing the damage caused to microplates by over-sealing.
Key Features
Real Time Display
- Rapid heating element to allow for a quick start up within minutes
- Real time temperature display to allow monitoring of heating process
Energy Saving Functions
- When idle, unit automatically switches to standby mode: heating element temperature reduces to 60°C to save energy
- When idle for longer periods, it automatically switches off for added safety
- Triggering of standby and switch off modes can be adjusted to suit user’s needs
Plate Adapters & Sealing Aids
- Triggering of standby and switch off modes can be adjusted to suit user’s needs
- Unique and cost saving adapter system
- Included standard plate carrier (59-2001) for sealing deep well plates and most skirted plates
- Additional plate carrier (59-2003, optional extra) for all 96 well PCR plates
- Both plate carriers can be combined for easier handling of shallow well plates, e.g. 384 well PCR plates
- For better sealing of films with a tendency to curl, Azenta Life Sciences offers sealing aids
- A weighted platen (59-2008) for use with deep well blocks can be ordered separately
- A sealing frame for use with all other plate designs is supplied when ordering the optional 59-2009 adapter
- The sealer allows for sealing of Individual Access Plates with the corresponding Individual Access Heat Seals using the Individual Access adapter (59-2005)
Plate Formats
- SBS standard polypropylene and polystyrene plates and deep well blocks
- PCR plates including skirted, semi-skirted and non-skirted formats
- Individual Access PCR Plates
RS-232 Port for Automation Integration
- RS-232 port enables unit integration into most automated systems
Ordering Information
Part Numbers
| Semi-Automated Sheet Heat Sealer Semi-automatic sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights |
||
|---|---|---|
| 59-2000 | Includes: universal power supply, power cord, manual, standard plate support adapter (59-2001), 12 month parts and labor warranty; 1 unit | |
| Adapters & Accessories | |
|---|---|
| 59-2008 | Weighted Sealing Platen; for holding down sealing sheets that have a tendency to curl; 1 platen |
| 59-2009 | Sealing Frame; for use with Plate Support Adapter, PCR 96 (59-2003); 1 frame |
| 59-2005 | Plate Support Adapter, Individual Access; for Individual Access seals; 1 adapter |
| 59-2001** | Plate Support Adapter, Standard; for skirted 96 and 384 well plates; 1 adapter |
| 59-2002 | Plate Support Adapter, Roche 1536; for Roche 1536 well PCR plates; 1 adapter |
| 59-2006 | Plate Support Adapter, Storage 96 and 384; for 96 and 384 well storage plates; 1 adapter |
| 59-2004 | Plate Support Adapter, PCR 384; for 384 well PCR plates; 1 adapter |
| 59-2007 | Plate Support Adapter, PCR 96 MPL; for 4ti-LB0109, 4ti-0117 and 96 well PCR plates; 1 adapter |
| 59-2003 | Plate Support Adapter, PCR 96; for 96 well PCR plates; 1 adapter |
