Description
Product Details

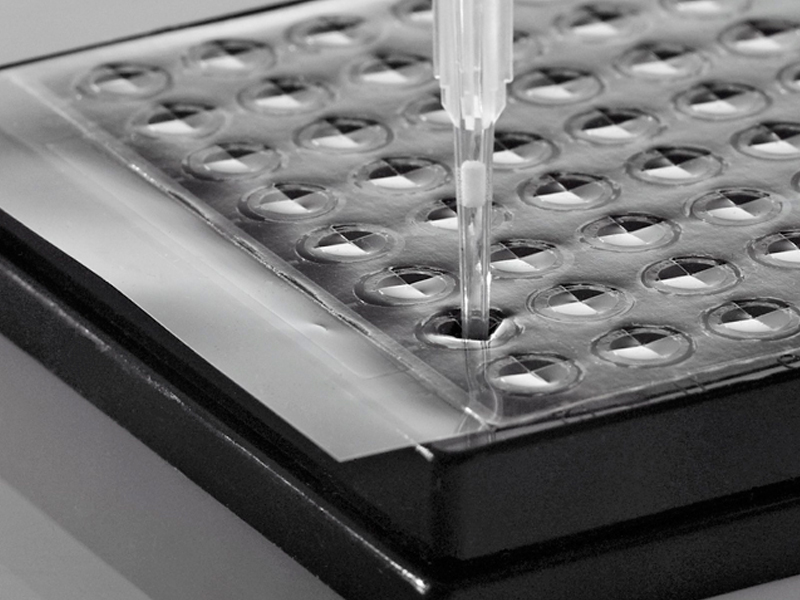

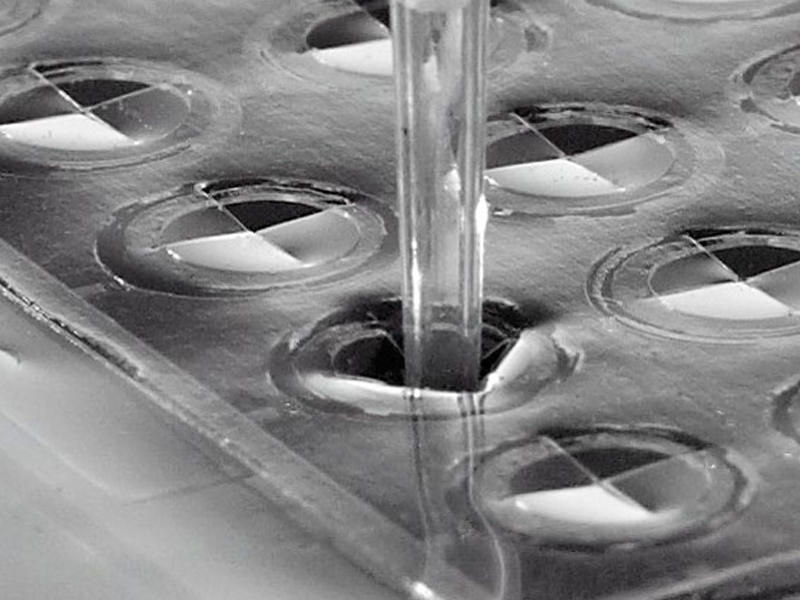

This strong adhesive seal was developed to facilitate easy sample removal with a manual or automated system. The seal is optically clear, being made from a transparent polyester film, and has a strong adhesive applied across the underside of the seal, except for 96 round windows which align to the 96 wells of a plate. The optical windows are cross-cut, allowing for easy access to the sample wells with a tip or probe with minimal pressure.
For all adhesive seals, the best sealing results are achieved using the hand held Adhesive Seal Roller (4ti-0502).
Key Features
Quality & Properties
- Pierceable
- Peelable
- Seal integrity range: -20°C to 110°C
- Non-sterile
- Free from DNase, RNase, and human genomic DNA
Use
- Applications: sample application or retrieval, for use in automated systems and sample analyzers such as HPLC and DNA sequencers
- Removal: will not leave a sticky residue on the plate surface following removal
- Suitable for cutting to fit part plates
- Replacement for: ABI® septa mats on capillary sequencers and to replace silicone and EVA storage plate cap mats
Options
- Sheet format: 135 x 77mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates with 96 round wells
Ordering Information
Part Numbers
| Pierceable Film Strong Adhesive, 96 Cross-Cut Windows Strong adhesive seal cross-cut windows, peelable, pierceable; suitable for 96 well plates (auto samplers, HPLC, sequencers) |
|
|---|---|
| 4ti-0566 | sheets (135 x 77mm); 100 sheets |
