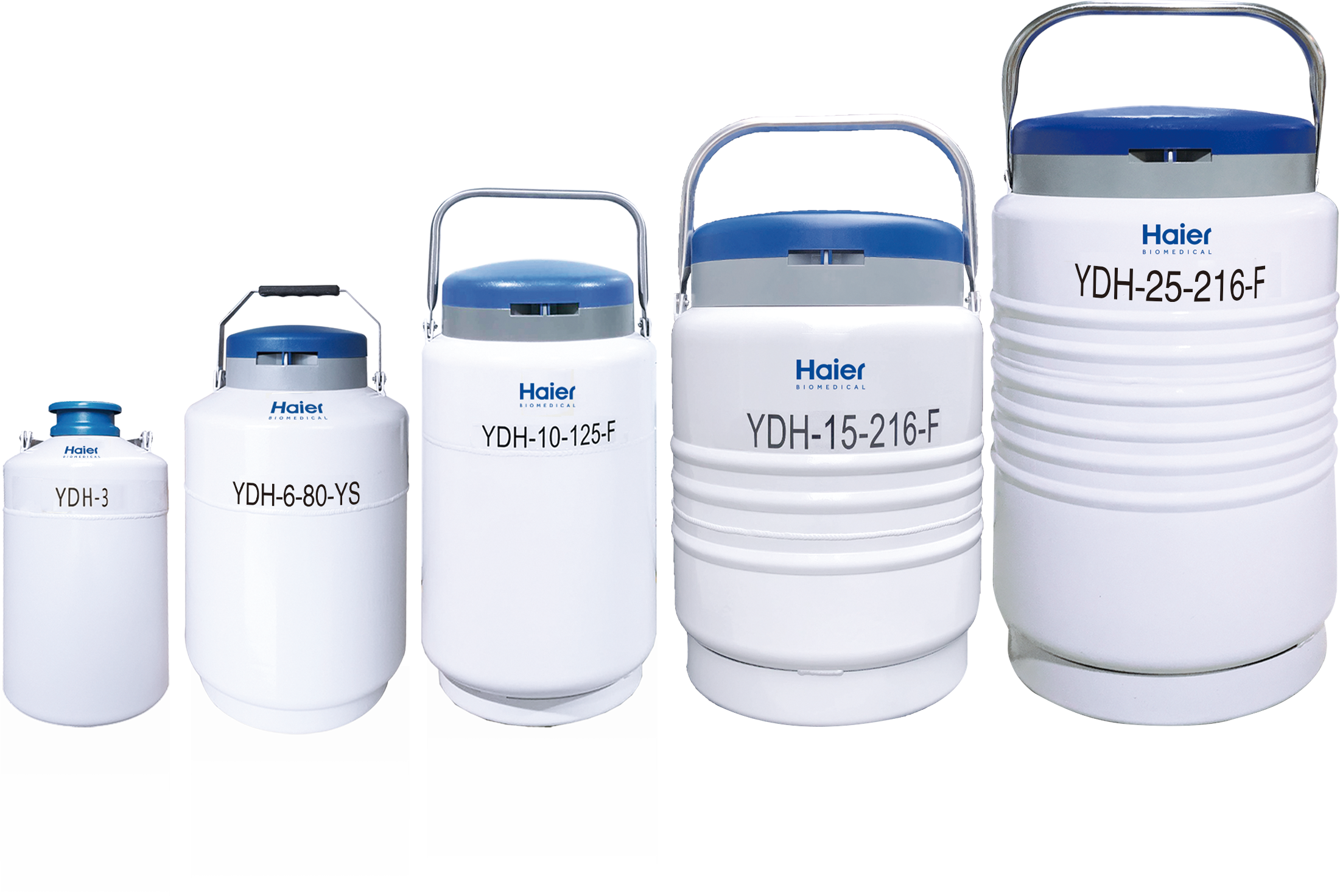

Liquid Nitrogen Container-Dryshipper Series
Dryshipper Series for Transportation (Round Canisters) is designed for safe sample transportation under cryogenic conditions (vapour phase storage, temperature under -190℃). Since the risk of LN2 release is avoided, it is suitable for air transportation of samples.
Specifications
Specifications
| Model | Volume of LN2(L) | 2ml Volume | Inside Neck Diameter (mm) | Static Evapouration Rate* (%/d) |
| YDH-3 | 3L | / | 50mm | 0.16 |
| YDH-6-80 | 6L | / | 80mm | 0.2 |
| YDH-10 -125-F | 10L | 100 | 125mm | 0.43 |

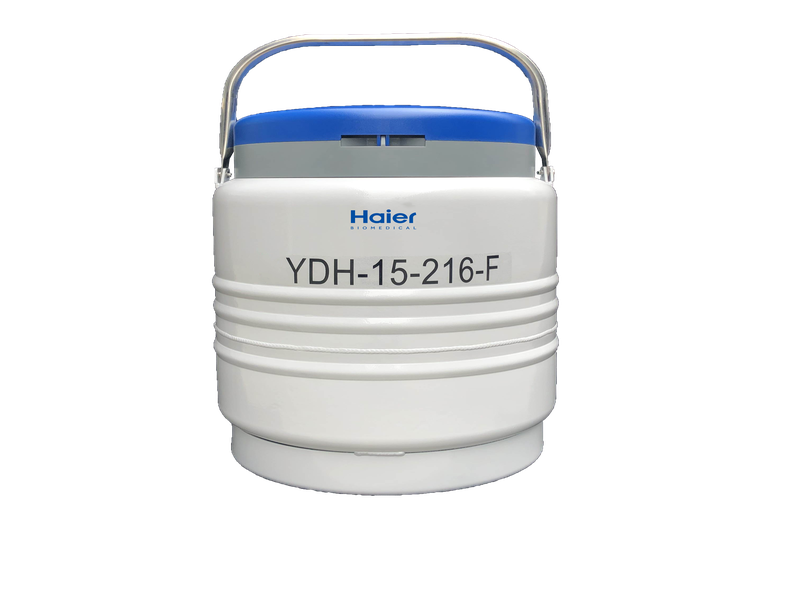

| YDH-15 -216-F | 15L | 300 | 216mm | 1.5 |
| YDH-25 -216-F | 25L | 500 | 216mm | 0.89 |
