Biobank series for large scale storage is designed to ensure the maximum storage capacity with the minimum consumption of liquid nitrogen to lower the overall cost of operation .
Large Scale Storage Capacities from 13,000 to 94,875 x Standard 2ml Cryovials
Vapour Phase Storage to Prevent Cross Contamination
Excellent Temperature Uniformity
One-Touch Defogging for Easier Access
Liquid Nitrogen Splash-Proof Feature Provides Safer Operation
Can be used to store all kinds of biological sample
| Model | Volume of LN2(L) | 2ml Volume | Inside Neck Diameter (mm) | Operating Height (mm) |
| YDD-1000-465 | 1014 | 51000 | 465mm | 1090 |

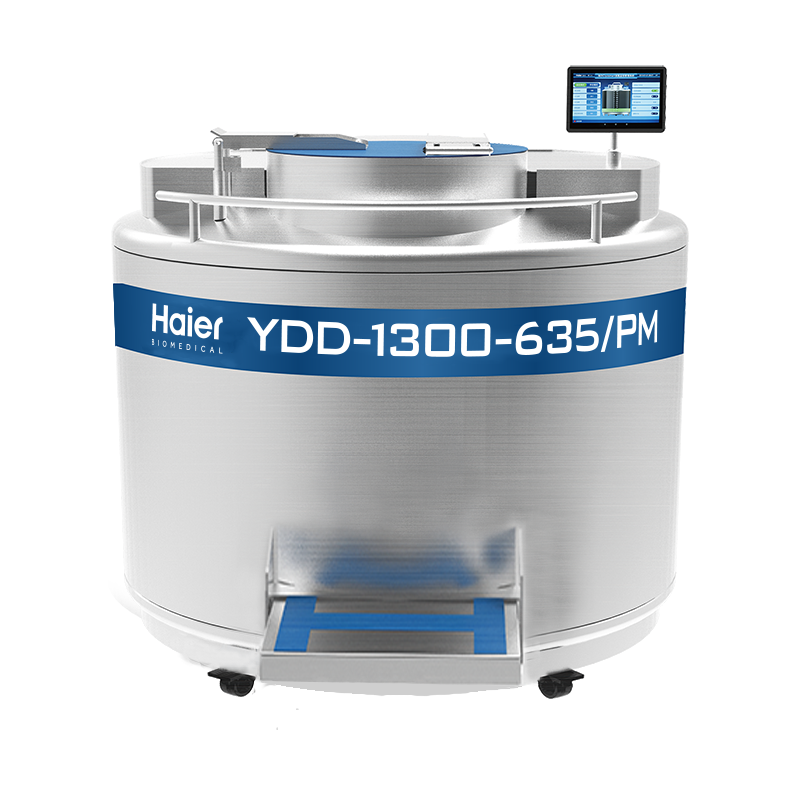

| YDD-1300-635 | 1340 | 58500 | 635mm | 997 |
| YDD-1600-635 | 1660 | 76050 | 635mm | 967 |
| YDD-1800-635 | 1880 | 94875 | 635mm | 1097 |
| YDD-350-326 | 350L | 13000 | 326mm | 1263 |
| YDD-370-326 | 370L | 15600 | 326mm | 1096 |
| YDD-450-326 | 460L | 21000 | 326mm | 1212 |

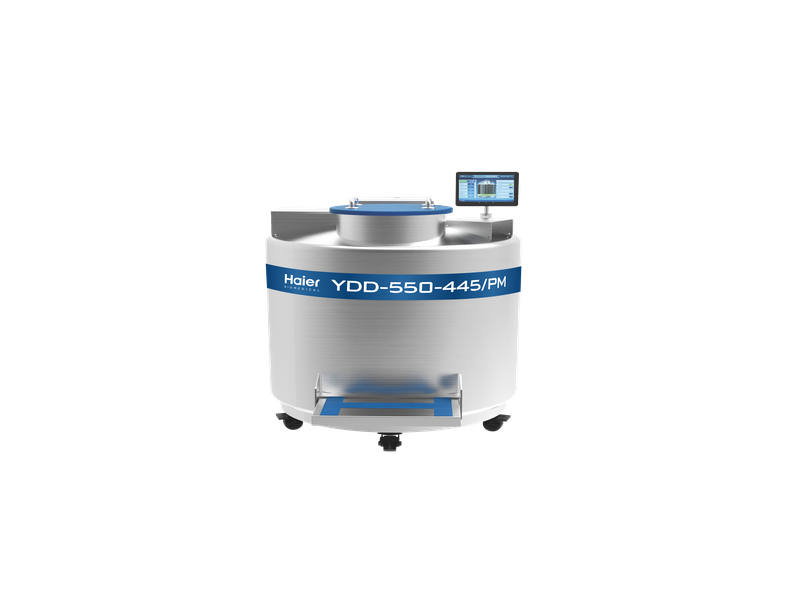

| YDD-550-445 | 587L | 27000 | 445mm | 970 |
| YDD-750-445 | 783L | 37800 | 445mm | 995 |
| YDD-850-465 | 890L | 42900 | 465mm | 980 |
