Gentier 96E Real-Time PCR System

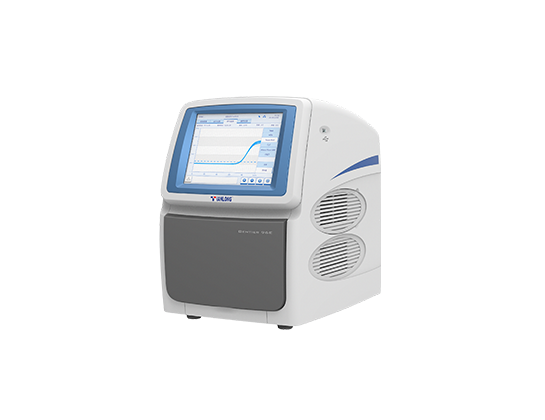

Gentier 96E Real-Time PCR System - Image 1

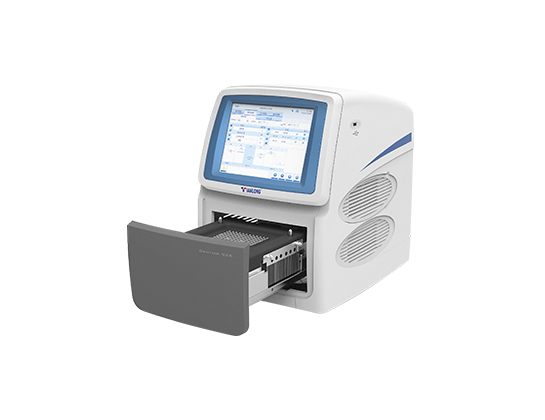

Gentier 96E Real-Time PCR System - Image 2

Gentier 96E Real-Time PCR System

96 samples to be scanned in 7s: The Gentier 96E real-time PCR system can significantly reduce testing time and improve efficiency for lab professionals, as it requires only 7 seconds to complete fluorescence scanning of all 96 wells.

Efficient temperature control: Based on the Peltier heating/cooling method, the maximum heating ramp rate is >6.1℃/s and the maximum cooling ramp rate is >5.0℃/s.
Power failure protection design:
Power failure protection design can recover the experiment automatically, with no more concern about instantaneous power failure.

SKU: Gentier 96E Category: Brand:

Description

The Tianlong Gentier 96E real-time PCR system is a PCR test machine designed to meet the specific needs of high-end laboratories. Featuring six fluorescence channels, the Gentier 96E real-time PCR system is capable of processing 96 samples in one test run. Indulge in the powerful and efficient temperature control system, easy-to-use software, and user-friendly operational designs. Tianlong Gentier 96E real-time PCR system can provide maximal reliability and efficiency for all your real-time PCR needs.

Gentier96 has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.

Specifications

Model Gentier 96E
Throughput 1- 96
Fluorescence Channels 6
Fluorescence Scanning Time 7s
Dye Compatibility Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green
Channel 2: HEX, VIC, TET, JOE
Channel 3: ROX, Texas Red
Channel 4: Cy5
Channel 5: Alexa Fluor 680
Channel 6: FRET
Optical System
Light Source High-brightness, long life and maintenance-free LED light source,excitation from the top
Detector Photodiodes (PDs), top scanning
Excitation Range CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm
Detection Range CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm
Fluorescence Dynamic Range Adjustable
Sample Dynamic Range From 101 to 1010copies
Thermal Black
Heating Method Peltier
Heating Rate >6.1 ℃/s
Cooling Rate >5.0 ℃/s
Temperature Uniformity ±0.1 ℃
Temperature Accuracy ≤0.1 ℃
Gradient Range 1℃-40 ℃
Gradient Block 12 row
Special Temperature Protocol Thermal gradients PCR, long PCR, Touch Down PCR
Sample Testing Linearity and Repeatability Linear correlation: /r/ ≥ 0.999
Repeatability: cycle threshold (Ct) value CV≤0 0.5%
Software Functions
Control Modes Model 1: 10.4 inch touch screen
Mode 2: PC direct control
Power Failure Protection Automatically start running experiments after power supply, no need to wait PC software
Data Storage and Transmission Upload and download through USB disk. 1000 results can be stored in machine
Reporting Function Templates reserved; customized experiment report
Key Applications Relative quantification, absolute quantification, melting curve analysis ,SNP analysis
Others
Operating System for PC Win7/Win10/Win11
Power Supply and Power Consumption AC 100-240V,50-60HZ, 900VA
Weight 30 Kg (net)
Instrument Dimension 555*475*484mm (W*L*H)
Suitable Consumables 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white).
Certificate IVDR CE

No downloads provided.
