Description
Product Details
CoolBox Cooling Workstation ice-free systems are bench top cooling workstations that provide sample cooling or freezing without ice, electricity or batteries. Cooling Workstation systems are versatile and accommodate a variety of sample formats and temperatures. The modular design enables the use of CoolRack sample modules to hold microfuge tubes, cryogenic vials, PCR tubes or plates, and more.
Key Features
Secure Sample Preparation
- Operates without ice, batteries or electricity
- Keeps samples cold at a uniform 0.5 to 4.0°C for up to 16 hours
- Keeps samples frozen (<0°C) for up to 8 hours
- The built-in 1-8ºC temperature indicator provides visual assurance of operational temperature while working
Broad Compatibility
- Versatile: accommodates most CoolRack modules
- Small footprint ideal for use in the hood especially in keeping temperature sensitive solutions cold
- To extend the cooling/freezing duration, keep an additional Cooling/Freezing Core in the freezer and replace the cartridge as needed
How it Works: Ease of Use
- Freeze the Cooling/Freezing Core in -20°C freezer
- Place frozen core in base/holder
- Rest CoolRack module on cartridge
- Module will equilibrate and maintain temperature via thermo-conductivity
- To extend the cooling/freezing duration, keep an additional Cooling/Freezing Core in the freezer and replace the core as needed
- Dry ice may be used in place of the cores to create a compact snap freezing workstation
Ordering Information
Part Numbers

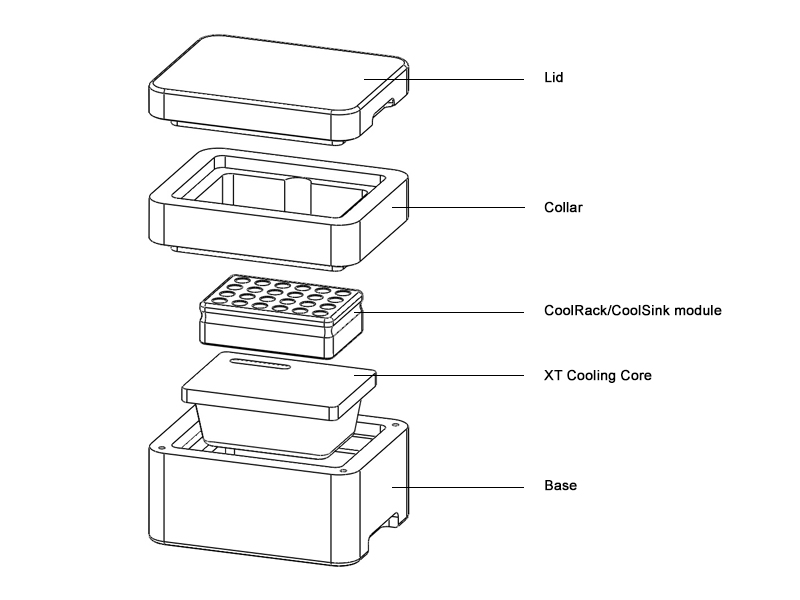

| CoolBox XT Cooling Workstation, Single Capacity Ice-free cooling/freezing system for tube and plate modules; includes CoolBox XT base, collar, lid and 1 core |
||
|---|---|---|
| BCS-502 | with cooling core, purple; 1 system | |

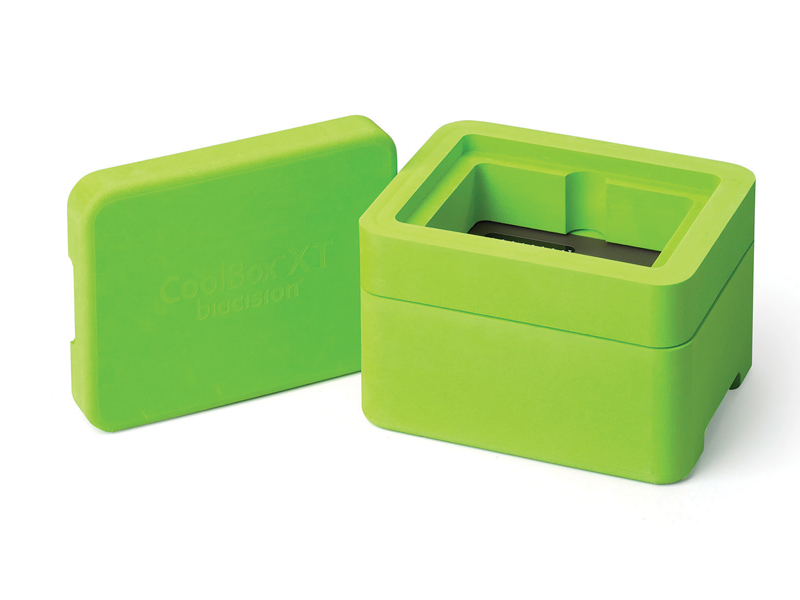

| BCS-502G | with cooling core, green; 1 system | |
| BCS-502O | with cooling core, orange; 1 system | |
| BCS-502PK | with cooling core, pink; 1 system | |
| BCS-502-F | with freezing core, purple; 1 system | |
| Combi Packs Pre-assembled CoolBox XT systems |
||
|---|---|---|
| BCS-570 | CoolBox XT PCR96 System For use with 1 96-well PCR plate, 12 x strip wells or 96 x 0.2ml tubes; includes 1 CoolBox XT and 1 SBS-compatible CoolRack XT PCR96; 1 kit |
|

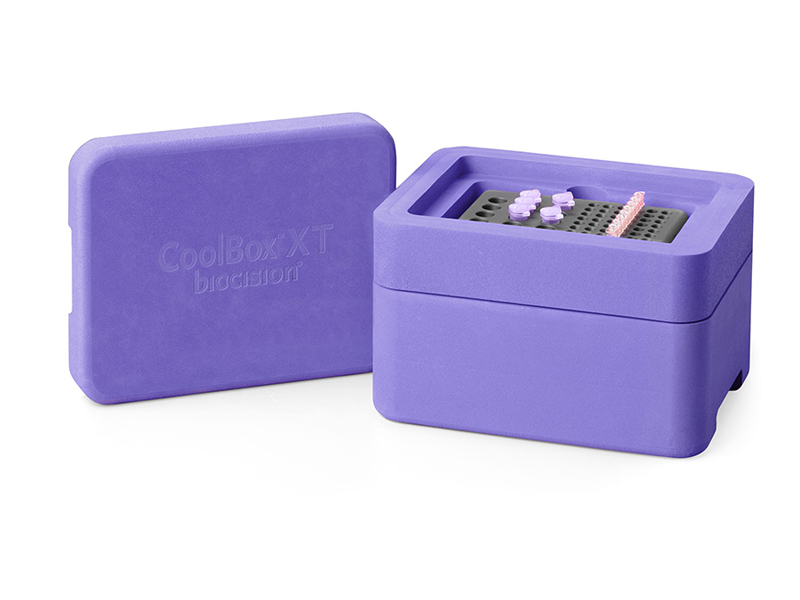

| BCS-572 | CoolBox XT PCR Strip System For use with 6 strip wells and 12 microfuge tubes (1.5 to 2.0ml); includes 1 CoolBox XT and 1 CoolRack XT M-PCR; 1 kit |
|
| BCS-575 | CoolBox XT CryoTube 24 System For use with 24 x 1.0 to 2.0ml cryogenic vials with “gripping” wells for one hand tube opening/closing; includes 1 CoolBox XT and 1 CoolRack XT CFT24; 1 kit |
|
| BCS-576 | CoolBox XT MicroTube 24 System For use with 24 x 1.5 to 2.0ml microfuge tubes; includes 1 CoolBox XT and 1 SBS-compatible CoolRack XT M24; 1 kit |
|
